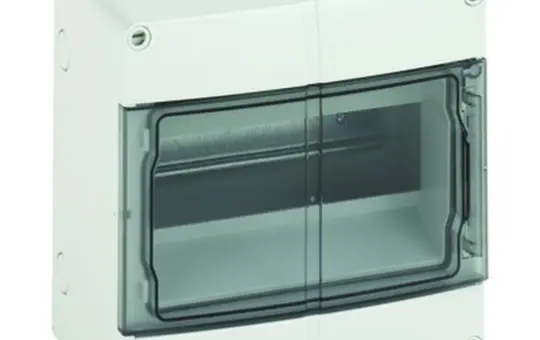

SPELSBERG AK 09 small distributor | 1 row, 9 HP

Manufacturer: SPELSBERG

Article no.: 20010849

EAN: 4013902063154

Manufacturer item number: 73540901

Manufacturer type: AK 09

Weight: 0,788 kg

In stock

Delivery: 2-3 business days

38,88 €

incl. VAT + shipping

pcs

Small distribution board, with protection class IP65, 1-row, 9 available modules, rated operating voltage: 400V AC, rated insulation voltage: 1000V AC, 1000V DC, metric knockouts at the top and bottom for universal cable entries with cable glands and/or double-membrane glands, pre-equipped with elastic DMS M20 entries at the top, with PE/N terminal rail with 2 terminal points 16mm² and 5 terminal points 6mm²
Dimensions: 200 x 200 x 122mm
Included accessories: Double-membrane glands: 1x M20, 1x M32, sealing plugs, cover and labeling strips

Brand: SPELSBERG
Class: Small distributor
Color: gray
Depth in mm: 200.00
Division units: 9
Height in mm: 122.00
Manufacturer item number: 73540901
Manufacturer type: AK 09
Mounting type: Surface-mounted
Number of rows: 1
old Voltus number: 1197184
Width in mm: 200.00

The following links may lead to external websites. Voltus cannot be held responsible for the accuracy or timeliness of external content.

Produktdatenblatt

Manufacturer information

SPELSBERG
Günther Spelsberg GmbH + Co. KG
Im Gewerbepark 1
58579 Schalksmühle
DE

info@spelsberg.de
www.spelsberg.de/

Hints

Bei einem nicht steckerfertigen elektrischen Gerät oder Bauteil dürfen Anschluss und Installation nur von einer qualifizierten Elektrofachkraft durchgeführt werden. Bitte beachte auch die Gebrauchsanweisung.

Recycling & disposal

Informationen zum Bereich Recycling & Entsorgung findest du hier: https://www.voltus.de/umweltschutz/.

Description

Specifications

Brand: SPELSBERG
Class: Small distributor
Color: gray
Depth in mm: 200.00
Division units: 9
Height in mm: 122.00
Manufacturer item number: 73540901
Manufacturer type: AK 09
Mounting type: Surface-mounted
Number of rows: 1
old Voltus number: 1197184
Width in mm: 200.00

Documents
