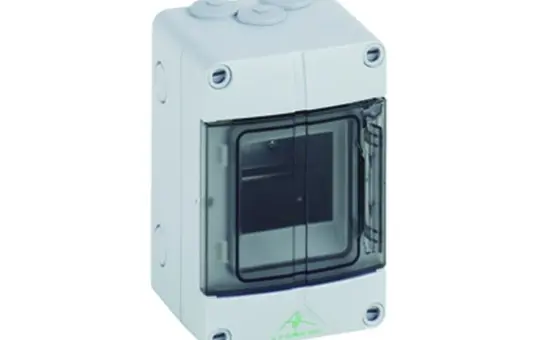

SPELSBERG AK 03 small distributor | 1 row, 3 HP

Manufacturer: SPELSBERG

Article no.: 20010846

EAN: 4013902063130

Manufacturer item number: 73540301

Manufacturer type: AK 03

Weight: 0,355 kg

In stock

Delivery: 2-3 business days

24,93 €

incl. VAT + shipping

pcs

Small distribution board, with protection class IP65, 1-row, 3 available modular spacings, rated operating voltage: 400V AC, top and bottom metric knockouts for universal cable entries with cable glands and/or double membrane glands, top pre-equipped with elastic DMS M20 glands, with PE/N terminal rail with 1 terminal point 16mm² and 3 terminal points 6mm²
Dimensions: 100 x 150 x 96mm
Included accessories: Double membrane gland: 1x M25, sealing plug, cover and labeling strips

Brand: SPELSBERG
Class: Small distributor
Color: gray
Depth in mm: 150.00
Division units: 3
Height in mm: 96.00
Manufacturer item number: 73540301
Manufacturer type: AK 03
Mounting type: Surface-mounted
Number of rows: 1
old Voltus number: 1104103
Width in mm: 100.00
