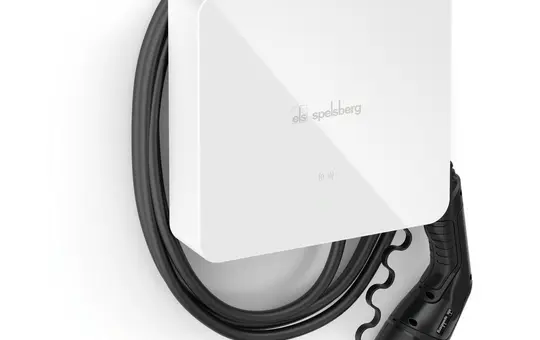

SPELSBERG 59143501 Wallbox Smart Pro with 5 m cable | white

SPELSBERG 59143501 Wallbox Smart Pro | with 5 m cable | white

Manufacturer: SPELSBERG
Article no.: 20083087
EAN: 4013902675692
Manufacturer item number: 59143501
Manufacturer type: Spelsberg Wallbox Smart Pro Polar 5m
Weight: 7,099 kg
Available on request
Electrical appliance take-back
pcs
Wallbox – ideal for intelligent charging of electric vehicles in private settings, complies with the requirements of § 14a of the Energy Industry Act (EnWG), charging power up to 11 kW (3-phase) / 3.7 kW (1-phase) and a maximum charging current of 16 A, charging current adjustable in 1-A increments, integrated DC residual current detection for DC fault currents ≥ 6 mA and temperature monitoring for safe charging, stylish design and compact housing dimensions for wall and pedestal mounting, protection class IP54, maximum connection cross-section for supply terminal 6 mm², impact resistance IK08, protection class II.

Easy installation as well as quick configuration and firmware updates with the free Spelsberg Wallbox App (available for iOS from version 14 and Android from version 6). Integrated MID meter for consumption billing, dynamic phase-individual load management with unbalance detection and external meter support for efficient use of available power, connection to
Brand
SPELSBERG
Calibration law compliant
No
Class
Wallboxes
Energy meter
No
Impact resistance
IK08
Key switch
No
LAN
No
Manufacturer item number
59143501
Manufacturer type
Spelsberg Wallbox Smart Pro Polar 5m
MID compliant
Yes
NFC
Yes
Number of phases
3
OCPP
No
RFID
Yes
Static load management integrated
Yes
suitable for dynamic load management
No
Wi-Fi
No
with cable
Yes
with display
No
