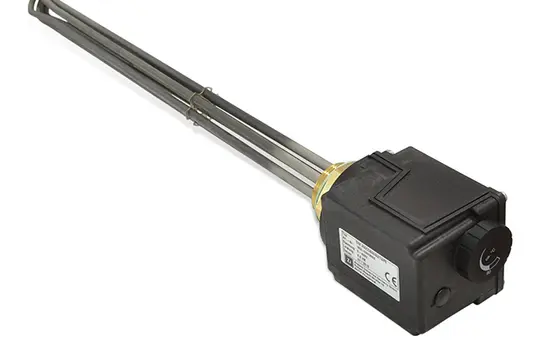

SMARTFOX 0791732486421 Heating Element 400 V | 4.5kW

Manufacturer: SMARTFOX

Article no.: 20026437

EAN: 0791732486421

Manufacturer item number: 0791732486421

Manufacturer type: 0791732486421

Weight: 0,001 kg

Available on request

pcs

6/4 inch threaded heating element including thermostat switch (9 degrees Celsius to 75 degrees Celsius) and safety thermostat (98 degrees Celsius).

Material heating pipes: highly corrosion-resistant chrome-nickel steel 2.4858 (AISI B424) with integrated insulation separation against corrosion.

Technical data:
Installation lengths: 445 mm
Electrical connection: 3-phase 400 V star connection
Max. heating temperature: 75 degrees Celsius
Min. setting temperature (frost protection): 9 degrees Celsius
Switching hysteresis: 10 Kelvin
Safety temperature limiter: STB 98 degrees Celsius
Max. ambient temperature: 80 degrees Celsius (at the housing)
Max. operating pressure: 10 bar
Unheated zone: 100 mm
Connection thread: 6/4 (1.5) male thread
Material heating pipes: highly corrosion-resistant chrome-nickel steel 2.4858 (AISI B424)

For further information / technical data, please refer to the manufacturer’s datasheet (under Documentation).

Brand: SMARTFOX
Class: heating elements
Manufacturer item number: 0791732486421
Manufacturer type: 0791732486421
Voltage in V: 400
