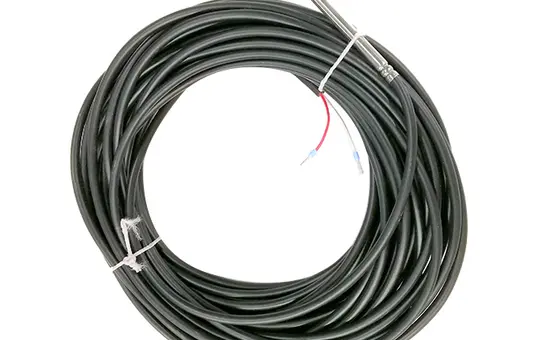

SMARTFOX 0767523866178 Temperature Sensor PT1000 | 5 m

Manufacturer: SMARTFOX

Article no.: 20026443

EAN: 0767523866178

Manufacturer item number: 0767523866178

Manufacturer type: 0767523866178

Weight: 0,14 kg

In stock

Delivery: 2-3 business days

pcs

SMARTFOX Temperature Sensor PT1000 PVC Cable 5m, up to max. 105 degrees Celsius; this allows programming of a minimum and maximum temperature in SMARTFOX and the implementation of the 2nd heating rod function.

Technical data:

Temperature sensor: PT1000

Measuring range: -35 degrees Celsius - +105 degrees Celsius

Measuring current: approx. 1mA

Insulation resistance: typically 100 MOhm at 20°C and 500VDC

Circuit type: 2-wire

Connection cable: PVC cable

Cable length: 5m

Connection: ferrule

Conductor cross-section: 2x0.25mm²

Protective sleeve: stainless steel

Installation: immersion sleeve

Protective sleeve length: 50mm

Protection rating: IP65

For further information / technical data, please refer to the manufacturer’s datasheet (under Documentation).

BAB-Tec: No
Bluetooth: No
Brand: SMARTFOX
Brightness sensor: No
Casambi: No
Class: Temperature sensor
CO2 sensor: No
Colour: black
DALI: No
ENOcean: No
free@home: No
Gira One: No
Hager KNXeasy: No
Integrated controller: No
JUNG HOME: No
KNX: No
KNX-RF: No
KNX-Secure: No
KNX-TP: No
Manufacturer item number: 0767523866178
Manufacturer type: 0767523866178
Matter: No
Mbus: No
Modbus: No
Modbus RTU: No
Modbus TCP: No
Shelly: No
Siemens LOGO!: No
suitable for installation in switch ranges: No
Theben LUXORliving: No
Thread: No
Type of transmission: Cable
Wi-Fi: No
Wiser Home: No
with display: No
with Netatmo: No
Zigbee: No
