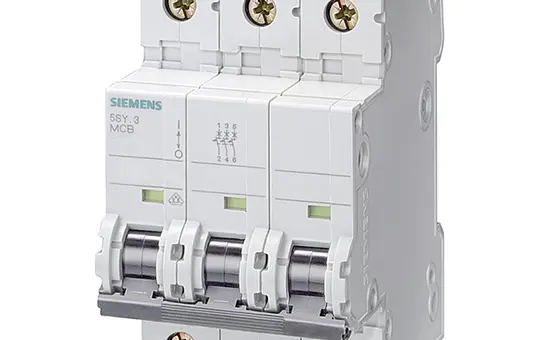

SIEMENS 5SY4316-6 Circuit Breaker Type B 3-pole 16A, 10kA

SIEMENS 5SY4316-6 Circuit Breaker Type B 3-pole | 16A, 10kA

Manufacturer: SIEMENS
Article no.: 20010953
EAN: 4001869181776
Manufacturer item number: 5SY4316-6
Manufacturer type: 5SY4316-6
Weight: 0,453 kg
In stock
Delivery: 2-3 business days
Electrical appliance take-back
pcs
MCB B16A, 3-pole, T=70, 10kA 5SY4316-6

Installation depth 70mm, trip characteristic B, total number of poles 3, number of protected poles 3, rated current 16A, rated voltage 400V, rated insulation voltage Ui 440V, rated impulse withstand voltage Uimp 4kV, rated breaking capacity Icn according to EN 60898 at 230 V 10kA, voltage type AC, rated breaking capacity Icn according to EN 60898 at 400 V 10kA, rated ultimate breaking capacity Icu according to IEC 60947-2 at 230 V 20kA, rated ultimate breaking capacity Icu according to IEC 60947-2 at 400 V 20kA, frequency 50 ... 50Hz, energy limiting class 3, overvoltage category 3, pollution degree 3, additional devices possible, width in modular units 3, protection class (IP) IP20, ambient operating temperature -40 ... 70°C, connectable conductor cross-section flexible 0.75 ... 35mm², connectable conductor cross-section solid 0.75 ... 35mm²,
Brand
SIEMENS
Breaking capacity in kA
10
Class
Circuit breaker
Connection technology
screw terminal
Division units
3 TE
Manufacturer item number
5SY4316-6
Manufacturer type
5SY4316-6
Number of poles
3-pole
Rated current in A
16
Trigger characteristics
B
