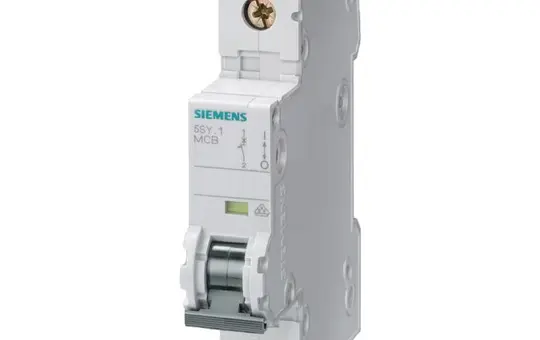

SIEMENS 5SY4120-7 circuit breaker type C 1-pole 20A, 10kA

SIEMENS 5SY4120-7 circuit breaker type C 1-pole | 20A, 10kA

Manufacturer: SIEMENS
Article no.: 20010990
EAN: 4001869181400
Manufacturer item number: 5SY4120-7
Manufacturer type: 5SY4120-7
Weight: 0,153 kg
Available on request
11,12 €
incl. VAT + shipping
pcs
Miniature circuit breaker C20A, 1-pole, T=70.10kA 5SY4120-7 Installation depth 70mm, Tripping characteristic C, Number of poles (total) 1, Number of protected poles 1, Rated current 20A, Rated voltage 400V, Rated insulation voltage Ui 440V, Rated impulse withstand voltage Uimp 4kV, Rated breaking capacity Icn according to EN 60898 at 230V 10kA, Voltage type AC, Rated breaking capacity Icn according to EN 60898 at 400V 10kA, Rated breaking capacity Icu according to IEC 60947-2 at 230V 20kA, Rated breaking capacity Icu according to IEC 60947-2 at 400V 20kA, Frequency 50 ... 50Hz, Energy limitation class 3, Overvoltage category 3, Pollution degree 3, Additional equipment possible, Width in modular units 1, Protection class (IP) IP20, Ambient temperature during operation -40 ... 70°C, Connectable conductor cross-section stranded 0.75 ... 35mm², Connectable conductor cross-section solid 0.75 ... 35mm²,
Brand
SIEMENS
Breaking capacity in kA
10.00
Class
Circuit breaker
Connection technology
screw terminal
Division units
1
Manufacturer item number
5SY4120-7
Manufacturer type
5SY4120-7
Number of poles
1-pole
old Voltus number
1154416
Rated current in A
20.00
Trigger characteristics
C

The following links may lead to external websites. Voltus cannot be held responsible for the accuracy or timeliness of external content.

Produktdatenblatt
Manufacturer information
SIEMENS
Siemens AG Digital Industries Deutschland
Siemenspromenade 2
91058 Erlangen
DE

contact@siemens.com
www.siemens.com/

Hints
  • Bei einem nicht steckerfertigen elektrischen Gerät oder Bauteil dürfen Anschluss und Installation nur von einer qualifizierten Elektrofachkraft durchgeführt werden. Bitte beachte auch die Gebrauchsanweisung.
