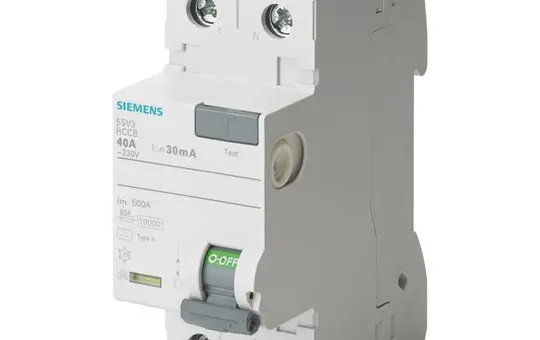

SIEMENS 5SV3314-6 RCD 2-pole 30 mA Type A 40 A, N right

SIEMENS 5SV3314-6 RCD 2-pole 30 mA Type A | 40 A, N right

Manufacturer: SIEMENS
Article no.: 20011433
EAN: 4001869429649
Manufacturer item number: 5SV3314-6
Manufacturer type: 5SV3314-6
Weight: 0,188 kg
In stock
Delivery: 2-3 business days
Electrical appliance take-back
pcs
Residual current circuit breaker Type A, 30mA, 40A 5SV3314-6 Number of poles 2, Rated voltage 230V, Rated current 40A, Rated residual operating current 0.03A, Mounting type DIN rail, Residual current type A, Short-circuit withstand capacity (Icw) 10kA, Surge current withstand capacity 1kA, Voltage type AC, With locking device, Frequency 50 Hz, Additional devices possible, Protection class (IP) IP20, Width in modular units 2, Installation depth 70mm, Ambient temperature during operation -25 ... 45°C, Connectable conductor cross-section multi-stranded 0.75 ... 35mm², Connectable conductor cross-section single-stranded 0.75 ... 35mm²,
Brand
SIEMENS
Breaking capacity in kA
1
Class
Residual current circuit breaker
Configuration
2-pole
Division units
2 TE
Fault current in mA
30
Fault current type
Type A
Manufacturer item number
5SV3314-6
Manufacturer type
5SV3314-6
Positioning neutral wire
right
Rated current in A
40

The following links may lead to external websites. Voltus cannot be held responsible for the accuracy or timeliness of external content.

Data Sheet
Manufacturer information
SIEMENS
Siemens AG Digital Industries Deutschland
Siemenspromenade 2
91058 Erlangen
DE

contact@siemens.com
www.siemens.com/
