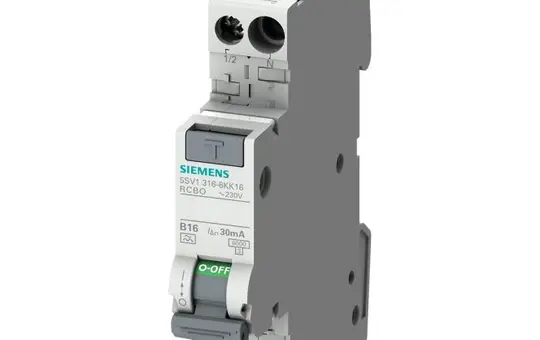

SIEMENS 5SV1316-6KK16 FI/LS switch type A B-Char. 30mA 1+N | 16 A

Manufacturer: SIEMENS

Article no.: 20011438

EAN: 4001869557779

Manufacturer item number: 5SV1316-6KK16

Manufacturer type: 5SV1316-6KK16

Weight: 0,133 kg

In stock

Delivery: 2-3 business days

39,96 €

incl. VAT + shipping

pcs

RCBO compact type A, 30mA, B16 5SV1316-6KK16 Number of poles (total) 2, Number of protected poles 1, Rated voltage 230V, Rated insulation voltage Ui 253V, Rated impulse withstand voltage Uimp 4kV, Rated current 16A, Rated residual current 0.03A, Residual current type A, Energy limitation class 3, Rated breaking capacity according to EN 61009 6kA, Rated breaking capacity according to IEC 60947-2 15kA, Rated switching capacity Icn according to EN 61009-1 6kA, Breaking characteristic instantaneous, Surge current strength 1kA, Voltage type AC, Frequency 50 Hz, Tripping characteristic B, Simultaneous switching neutral conductor, With locking device, Overvoltage category 2, Pollution degree 2, Ambient temperature during operation -25 ... 45°C, width in modular units 1, installation depth 70mm, flush mounting, false trigger protection, protection class (IP) IP20, connectable conductor cross-section single-wire 0.75 ... 16mm², connectable conductor cross-section multi-wire 0.75 ... 16mm²,

Brand: SIEMENS
Breaking capacity in kA: 1.00
Class: FI/LS switch
Configuration: 2-pole
Division units: 1
Fault current in mA: 30
Fault current type: Type A
Manufacturer item number: 5SV1316-6KK16
Manufacturer type: 5SV1316-6KK16
old Voltus number: 1693045
Positioning neutral wire: right
Rated current in A: 16.00

The following links may lead to external websites. Voltus cannot be held responsible for the accuracy or timeliness of external content.

Produktdatenblatt

Manufacturer information

SIEMENS
Siemens AG Digital Industries Deutschland
Siemenspromenade 2
91058 Erlangen
DE

contact@siemens.com
www.siemens.com/

Hints

Bei einem nicht steckerfertigen elektrischen Gerät oder Bauteil dürfen Anschluss und Installation nur von einer qualifizierten Elektrofachkraft durchgeführt werden. Bitte beachte auch die Gebrauchsanweisung.

Recycling & disposal

Informationen zum Bereich Recycling & Entsorgung findest du hier: https://www.voltus.de/umweltschutz/.

Description

Specifications

Brand: SIEMENS
Breaking capacity in kA: 1.00
Class: FI/LS switch
Configuration: 2-pole
Division units: 1
Fault current in mA: 30
Fault current type: Type A
Manufacturer item number: 5SV1316-6KK16
Manufacturer type: 5SV1316-6KK16
old Voltus number: 1693045
Positioning neutral wire: right
Rated current in A: 16.00
