SIEDLE ACTLM 770-0 AG Camera Door Speaker Vario Access horizontal/vertical detection range | anthracite gray

SIEDLE ACTLM 770-0 AG Camera Door Speaker Vario Access | horizontal/vertical detection range | anthracite gray

Manufacturer: SIEDLE
Article no.: 20055783
EAN: 4056138012671
Manufacturer item number: 210011522-00
Manufacturer type: ACTLM 770-0 AG
Weight: 0,2 kg
Available on request
Electrical appliance take-back
pcs

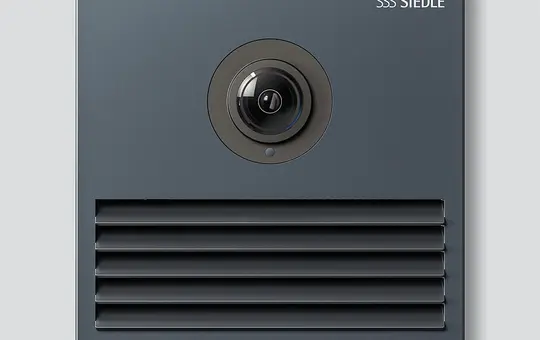

The Access camera door speaker for Siedle Vario combines camera, speaker, and microphone with automatic day/night switching and integrated infrared lighting. With a horizontal detection angle of approx. 130° and vertical 100°, it offers comprehensive monitoring. Easy wiring through pluggable cable connection, LAN interface (RJ-45, 10/100 Mbits), UV-resistant shutter, and adjustable speech and microphone sensitivity. Supports audio codec G.722, acknowledgement tone, and controllable nameplate lighting. Video formats 16:9, resolution up to 1920 x 1080 pixels with WDR. Requires Access Professional from version 7.2.0 and for door opener connection the "IP switching actuator for Access". Operates via PoE according to 802.3af, IP 54, IK 07, –20 °C to +55 °C operating temperature, installation height 3.5 mm, dimensions 99 x 99 x 35 mm.
Brand
SIEDLE
Class
Cameras
Colour
gray
Installation technology
Network technology
Location
Outside
Manufacturer item number
210011522-00
Manufacturer type
ACTLM 770-0 AG
Material
Plastic

The following links may lead to external websites. Voltus cannot be held responsible for the accuracy or timeliness of external content.

Data Sheet
Manufacturer information
SIEDLE
S. Siedle & Söhne Telefon- und Telegrafenwerke OHG
Bregstraße 1
78120 Furtwangen
DE

info@siedle.de
www.siedle.de/

Hints
  • Bei einem nicht steckerfertigen elektrischen Gerät oder Bauteil dürfen Anschluss und Installation nur von einer qualifizierten Elektrofachkraft durchgeführt werden. Bitte beachte auch die Gebrauchsanweisung.
