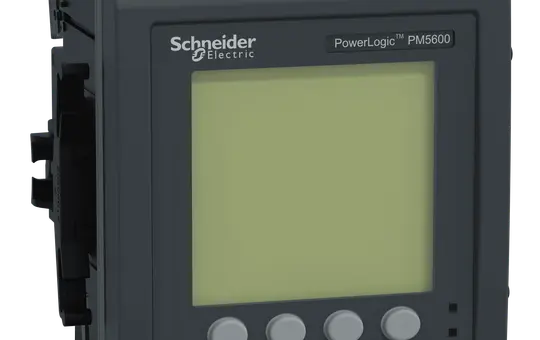

The PowerLogic PM5660 is a universal measuring device for front panel mounting (96 mm x 96 mm) with a fully graphical and backlit LCD display. The measuring device offers class 0.2s accuracy according to the IEC 62053-22 standard and 128 samples per cycle. The device measures energy, active and reactive power, voltage, current, frequency, power factor, and up to the 63rd harmonic. It features 4-quadrant energy measurement. It has 1.1 megabytes of memory for up to 14 selectable parameters with configurable interval and duration. This measuring device also includes direct neutral conductor monitoring and residual current monitoring with fault current calculation. The device operates on a 50Hz or 60Hz network and accepts a supply voltage of 100 to 480 VAC and 125 to 250 VDC. The rated current of this measuring device is 1 A or 5 A and supports configurations with one phase and neutral conductor, three phases, or three phases and neutral conductor.
Brand
SCHNEIDER
Class
Measuring devices
KNX
No
LAN
No
Manufacturer item number
METSEPM5660
Manufacturer type
METSEPM5660
Mbus
No
Modbus RTU
No
Modbus TCP
No
Mounting type
Front mounting
Wi-Fi
No
