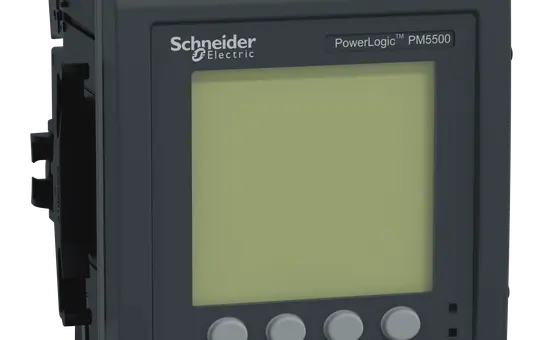

The PowerLogic PM5580 is a universal measuring device for front panel mounting (96 mm x 96 mm) with a fully graphic and backlit LCD display. The measuring device offers an accuracy of class 0.2s according to the IEC 62053-22 standard and 128 samples per cycle. The device measures energy, active and reactive power, voltage, current, frequency, power factor, and up to the 63rd harmonic. It features 4-quadrant energy measurement. It has 1.1 megabytes of memory for up to 14 selectable parameters with configurable interval and duration. This measuring device also provides direct monitoring of the neutral conductor. The device operates in a direct current network and accepts a supply voltage of 24 VDC. The rated current of this measuring device is 1 A or 5 A and supports configurations with one phase and neutral conductor, three phases, or three phases and neutral conductor. The measuring voltage range between the phases is 20 to 690 VAC at 45 to 65 Hz.
Brand
SCHNEIDER
Class
Measuring devices
KNX
No
LAN
No
Manufacturer item number
METSEPM5580
Manufacturer type
METSEPM5580
Mbus
No
Modbus RTU
No
Modbus TCP
No
Mounting type
Front mounting
Wi-Fi
No

The following links may lead to external websites. Voltus cannot be held responsible for the accuracy or timeliness of external content.

Data Sheet
Manufacturer information
SCHNEIDER
Schneider Electric GmbH
Gothaer Str. 29
40880 Ratingen
DE

de-gh@se.com
www.se.com/
