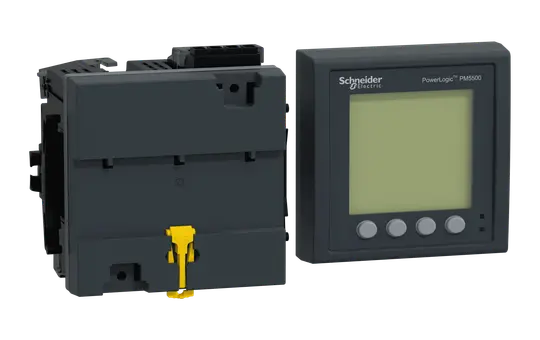

The PowerLogic PM5563RD is a universal DIN rail meter with a remote display (96 mm x 96 mm) for front panel mounting. The meter offers Class 0.2s accuracy according to IEC 62053-22 standard and 128 samples per cycle. The meter measures energy, active and reactive power, voltage, current, frequency, power factor, and up to the 63rd harmonic. It features 4-quadrant energy measurement. It has 1.1 megabytes of memory for up to 14 selectable parameters with configurable interval and duration. This meter also provides direct monitoring of the neutral conductor. The device operates in a 50Hz or 60Hz network and accepts a supply voltage of 100 to 480 VAC and 125 to 250 VDC. The rated current of this meter is 1 A or 5 A and supports configurations with one phase and neutral, three phases, or three phases and neutral. The measurement voltage range between phases is 20 to 690 VAC at 45 to 65 Hz.
Brand
SCHNEIDER
Class
Measuring devices
KNX
No
LAN
No
Manufacturer item number
METSEPM5563RD
Manufacturer type
METSEPM5563RD
Mbus
No
Modbus RTU
No
Modbus TCP
No
Mounting type
Front mounting
Wi-Fi
No
