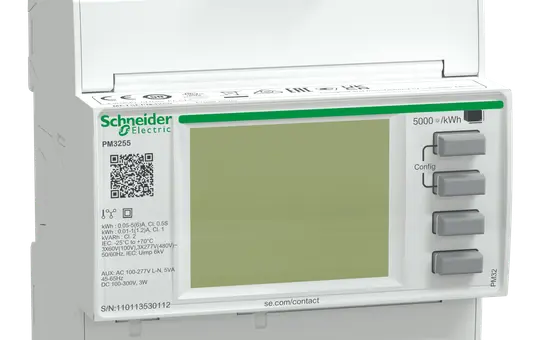

SCHNEIDER METSEPM3255 Universal Measuring Instruments PowerLogic PM3255 Modbus RTU, 2 inputs/outputs

SCHNEIDER METSEPM3255 Universal Measuring Instruments PowerLogic PM3255 | Modbus RTU, 2 inputs/outputs

Manufacturer: SCHNEIDER
Article no.: 20070012
EAN: 3606480481611
Manufacturer item number: METSEPM3255
Manufacturer type: METSEPM3255
Weight: 0,26 kg
Available on request
Electrical appliance take-back
pcs
PowerLogic PM3255 universal meter for DIN mounting with a backlit LCD display (128 x 96 pixels). The meter offers a class 0.5s accuracy according to IEC 62053-22 standard and 32 samples per cycle. The meter measures energy, active and reactive power, voltage, current, frequency, power factor, apparent power, total harmonic distortion, and up to the 15th harmonic. With 4-quadrant energy measurement. The meter operates on a 50Hz or 60Hz network and accepts a supply voltage of 100 to 277VAC, 173 to 480VAC, and 100 to 300VDC. The rated current for this meter is 1 A or 5 A and supports single-phase, single-phase with neutral, or three-phase configurations. The direct measurement range is 50 to 570VAC, with an external voltage transformer 570 to 999000VAC. The measurement voltage range between phases is 80 to 570 VAC at 45 to 65 Hz.
Brand
SCHNEIDER
Class
Measuring devices
KNX
No
LAN
No
Manufacturer item number
METSEPM3255
Manufacturer type
METSEPM3255
Mbus
Yes
Modbus RTU
Yes
Modbus TCP
No
Mounting type
Series installation
Wi-Fi
No
