PHOENIX CATAN C1 PLCnext Technology

PHOENIX CATAN C1 | PLCnext Technology

Manufacturer: PHOENIX CONTACT

Article no.: 20094766

EAN: 4067923555358

Manufacturer item number: 1886438

Manufacturer type: CATAN C1

Weight: 0,264 kg

In stock

Delivery: 2-3 business days

pcs

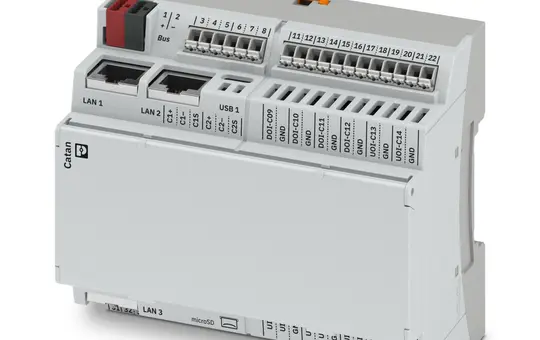

The CATAN C1 controller is the central unit of the CATAN product family for building and room automation. The compact REG enclosure (6 TE) saves space in the distribution board. The flexible I/O mix further reduces space and cost requirements. Each channel can be configured individually: universal inputs are suitable, for example, for temperature sensors, 0–10 V signals, or as counters; outputs can also be used as digital inputs. An integrated managed switch with 3 × 1 GBit/s is included.

Thanks to PLCnext Technology, the controller supports apps from the PLCnext Store, making it a flexible smart building platform. It also features the function of a KNX IP router for forwarding KNX telegrams and can be integrated into a KNX IP backbone infrastructure.

The following links may lead to external websites. Voltus cannot be held responsible for the accuracy or timeliness of external content.

Data Sheet

Manufacturer information

PHOENIX CONTACT
PHOENIX CONTACT Deutschland GmbH
Flachsmarktstr. 8
32825 Blomberg
DE

cpm@phoenixcontact.de
www.phoenixcontact.com/

Description

The CATAN C1 controller is the central unit of the CATAN product family for building and room automation. The compact REG enclosure (6 TE) saves space in the distribution board. The flexible I/O mix further reduces space and cost requirements. Each channel can be configured individually: universal inputs are suitable, for example, for temperature sensors, 0–10 V signals, or as counters; outputs can also be used as digital inputs. An integrated managed switch with 3 × 1 GBit/s is included.

Thanks to PLCnext Technology, the controller supports apps from the PLCnext Store, making it a flexible smart building platform. It also features the function of a KNX IP router for forwarding KNX telegrams and can be integrated into a KNX IP backbone infrastructure.
