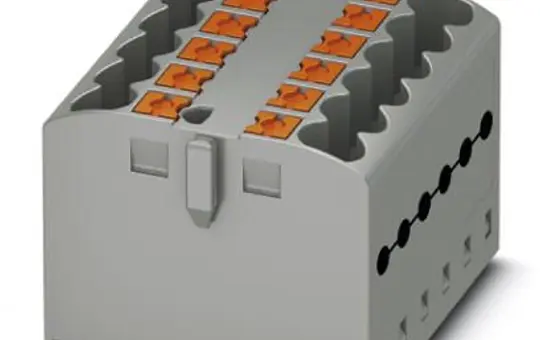

PHOENIX 3273286 distribution block PTFIX 12-fold | gray | 2,5 mm²

PHOENIX 3273286 distribution block PTFIX | 12-fold | gray | 2,5 mm²

Manufacturer: PHOENIX CONTACT
Article no.: 20008970
EAN: 4055626392097
Manufacturer item number: 3273286
Manufacturer type: PTFIX 12 X2,5 GY
Weight: 0,0228 kg
Available on request
3,75 €
incl. VAT + shipping
pcs
Distribution block PTFIX 12X2.5 GY Connectable conductor cross-section, fine-stranded without wire end ferrule 0.14 ... 2.5mm², Connectable conductor cross-section, fine-stranded with wire end ferrule 0.14 ... 2.5mm², Connectable conductor cross-section, solid-stranded 0.14 ... 4mm², Connectable conductor cross-section, stranded 0.14 ... 2.5mm², Rated current In 24A, Rated voltage 450V, Type of electrical connection 1 other, Type of electrical connection 2 other, Number of levels 1, Number of terminal points per level 2, Mounting type other, Material of the insulating body other, Operating temperature -60 ... 105°C, Flammability class of the insulating material according to UL 94 V0, Width 31.45mm, Height 28.6mm, Depth 21.7mm, Color gray,
Brand
PHOENIX CONTACT
Class
Terminal blocks
Color
gray
Cross section in mm
0.14
Division units
-
Manufacturer item number
3273286
Manufacturer type
PTFIX 12 X2,5 GY
old Voltus number
1677766
Rated current
24.00
Type
PHOENIX PTFIX
Type of assembly
Support rail

The following links may lead to external websites. Voltus cannot be held responsible for the accuracy or timeliness of external content.

Produktdatenblatt
Produktdatenblatt
Manufacturer information
PHOENIX CONTACT
PHOENIX CONTACT Deutschland GmbH
Flachsmarktstr. 8
32825 Blomberg
DE

cpm@phoenixcontact.de
www.phoenixcontact.com/
