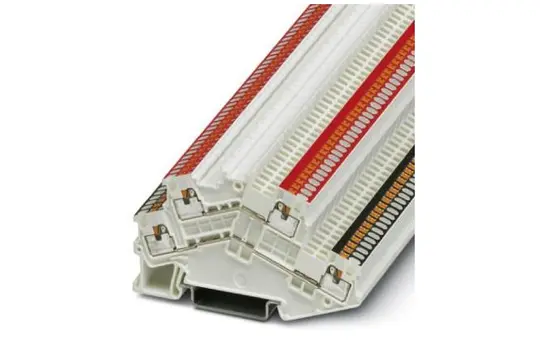

PHOENIX 3214662 double-decker terminal PTTBS | black & red | white | 1,5 mm²

Manufacturer: PHOENIX CONTACT

Article no.: 20007554

EAN: 4055626158013

Manufacturer item number: 3214662

Manufacturer type: PTTBS 1,5/S WH/U-BK/O-RD

Weight: 0,0079 kg

In stock

Delivery: 2-3 business days

0,95 €

incl. VAT + shipping

pcs

Double-level terminal block 0.14-1.5 mm², white PTTBS1.5SWH/U-BKO-RD Connectable conductor cross-section, finely stranded without wire end ferrule 0.14 ... 1.5 mm², Connectable conductor cross-section, finely stranded with wire end ferrule 0.14 ... 1 mm², Connectable conductor cross-section, solid 0.14 ... 1.5 mm², Connectable conductor cross-section, stranded 160 ... 2.5 mm², Rated current In 16 A, Rated voltage 500 V, Type of electrical connection 1 other, Type of electrical connection 2 other, Number of levels 2, Number of clamping points per level 2, Mounting type: DIN rail TH35, Material of the insulating body: other, Operating temperature -60 ... 105 °C, Flammability class of the insulating material according to UL 94 V0, Width 3.5 mm, Height 78.8mm, depth 46.72mm, explosion-proof version "Ex e", end plate required, color white,

Application: KNX output terminals
Brand: PHOENIX CONTACT
Class: Terminal blocks
Color: white
Cross section in mm: 0.14
Division units: -
Manufacturer item number: 3214662
Manufacturer type: PTTBS 1,5/S WH/U-BK/O-RD
old Voltus number: 1687773
Rated current: 16.00
Type: Multi-level terminals
Type of assembly: Support rail

The following links may lead to external websites. Voltus cannot be held responsible for the accuracy or timeliness of external content.

Produktdatenblatt

Manufacturer information

PHOENIX CONTACT
PHOENIX CONTACT Deutschland GmbH
Flachsmarktstr. 8
32825 Blomberg
DE

cpm@phoenixcontact.de
www.phoenixcontact.com/

Hints

Bei einem nicht steckerfertigen elektrischen Gerät oder Bauteil dürfen Anschluss und Installation nur von einer qualifizierten Elektrofachkraft durchgeführt werden. Bitte beachte auch die Gebrauchsanweisung.

Recycling & disposal

Informationen zum Bereich Recycling & Entsorgung findest du hier: https://www.voltus.de/umweltschutz/.

Description

Specifications

Application: KNX output terminals
Brand: PHOENIX CONTACT
Class: Terminal blocks
Color: white
Cross section in mm: 0.14
Division units: -
Manufacturer item number: 3214662
Manufacturer type: PTTBS 1,5/S WH/U-BK/O-RD
old Voltus number: 1687773
Rated current: 16.00
Type: Multi-level terminals
Type of assembly: Support rail
