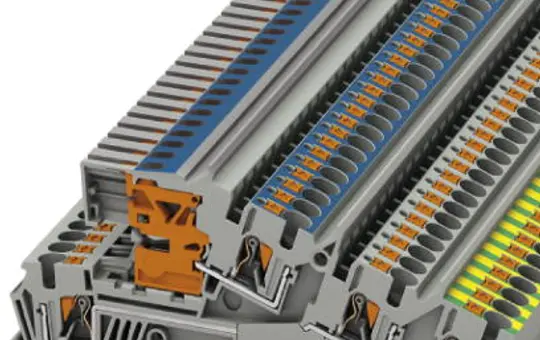

PHOENIX 3214047 Installation floor terminal PTI | PE, L, NT | gray | 4 mm²

Manufacturer: PHOENIX CONTACT

Article no.: 20006754

EAN: 4046356817776

Manufacturer item number: 3214047

Manufacturer type: PTI 4-PE/L/NT

Weight: 0,024 kg

In stock

Delivery: 2-3 business days

3,34 €

incl. VAT + shipping

pcs

The PTI 4-PE/L/NT installation multi-level terminal block from Phoenix Contact (article number 3214047) is a multi-storey through terminal block with push-in connection technology and partially integrated protective conductor terminal. It has been specially designed for use in installation distribution boards and enables space-saving wiring on up to three levels. The terminal block is suitable for use on DIN rails and meets high requirements for safety, fire protection, and mechanical stability.

Technical Features

Article type: Multi-storey terminal blocks
Manufacturer: PHOENIX CONTACT
Manufacturer type: PTI 4-PE/L/NT
Connections: PE, L, NT
Rated current: 28 A (at 4 mm² conductor cross-section)
Maximum load current: 30 A (at 4 mm² and 3-pole block)
Rated voltage: 400 V (phase conductor/phase conductor), 250 V (phase conductor/PE or N)
Rated impulse voltage: 4 kV
Overvoltage category: III
Pollution degree: 3
Insulating material group: I
Insulating material: PA
Flammability class: UL 94 V0
Colour: grey
Width: 5.2 mm
Height: 101 mm
Mounting depth: 48.6 mm (NS 35/7.5), 58 mm (NS 35/15)
Conductor cross-section rigid: 0.14 mm² - 4 mm²
Conductor cross-section flexible: 0.14 mm² - 4 mm²
With ferrule: 0.14 mm² - 4 mm²
Strip length: 8–10 mm
Push-in connection: Yes
Test contact: available on every level
Operating temperature range: -60 °C to +85 °C
Storage temperature range: -25 °C to +55 °C

The PHOENIX CONTACT PTI multi-storey terminal block features modern push-in technology, which allows tool-free insertion of rigid conductors as well as flexible conductors with ferrules from 0.34 mm². This significantly facilitates installation and saves time during wiring. Each terminal point is clearly labelled and remains easily identifiable even in dense assemblies, enhancing clarity and ease of maintenance. All three levels have double functional chambers that provide both testing and bridging options. The terminal block meets the requirements for hand-back and finger protection according to DIN EN 50274 and offers high mechanical strength for long-term use in demanding environments.

The installation multi-level terminal block is particularly suitable for use in installation distribution boards of residential and commercial buildings where compact and structured wiring is required. It is also used in control cabinets with high packing density, as its three-storey design saves space while simultaneously allowing clear separation of potentials. In building automation as well as energy distribution, it offers a reliable and flexible connection solution. Furthermore, it is suitable for applications in rail vehicles, as it meets the fire protection standard DIN EN 45545-2.

Phoenix Contact is a globally leading manufacturer of components, systems, and solutions in electrical engineering, electronics, and automation. The company, based in Blomberg, develops innovative products for industrial connection technology, control, and communication. Focusing on quality, sustainability, and technological progress, Phoenix Contact supports customers worldwide in implementing modern automation solutions.

Brand: PHOENIX CONTACT
Class: Terminal blocks
Colour: gray
Cross section in mm: 0.14
for neutral conductor rail: Yes
KNX: No
Manufacturer item number: 3214047
Manufacturer type: PTI 4-PE/L/NT
Rated current: 28
Type of assembly: Support rail
with feed: No
with neutral conductor terminal: Yes
with PE clamp: Yes
