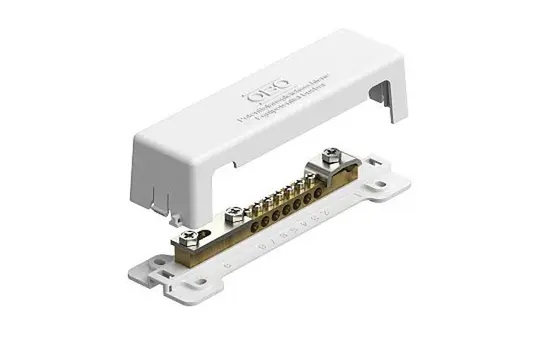

OBO BETTERMANN 5015075 Equipotential Bonding Bar | OBO Green

Manufacturer: OBO BETTERMANN

Article no.: 20004467

EAN: 4012195931669

Manufacturer item number: 5015075

Manufacturer type: 1809 NR

Weight: 0,223 kg

In stock

Delivery: 4-8 business days

pcs

The OBO Green equipotential bonding bar is a solution made from cellulose acetate CA for the installation of equipotential bonding according to DIN VDE 0100-410/-540 as well as lightning protection equipotential bonding according to DIN VDE 0185-305. The base material for the product is a proven material from the paper industry.

• Base plate and cover made of CA, white

• Cover sealable / writable

• Contact strip made of brass, nickel-plated

• Screws and clamps made of steel, electro-galvanised

• Lightning current carrying capacity 100 kA (10/350)

Connection options:

• 7 single- or multi-wire cables up to 25 mm² or fine-stranded cables up to 16 mm²

• 1 round conductor Rd 8-10

• 1 flat cable up to FL 30 or round conductor 8-10

Brand: OBO BETTERMANN
Class: Potential equalization rails
Manufacturer item number: 5015075
Manufacturer type: 1809 NR
Material: Brass
