OBO BETTERMANN 2008844 Small Distribution Board SDB 1 row, 5 HP, plug-in terminals, PC

OBO BETTERMANN 2008844 Small Distribution Board SDB | 1 row, 5 HP, plug-in terminals, PC

Manufacturer: OBO BETTERMANN
Article no.: 20008934
EAN: 4012196465750
Manufacturer item number: 2008844
Manufacturer type: SDB 05 PC
Weight: 0,76 kg
Available on request
Electrical appliance take-back
pcs

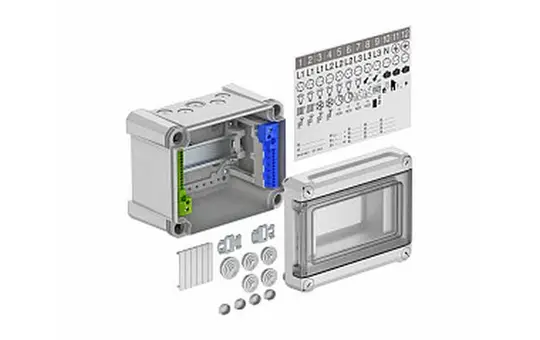

Small distribution box with terminal strip for surface mounting, for power sub-distribution indoors and outdoors, according to IEC 439-3. With pre-mounted 35 mm DIN rail. Protection rating IP66 and impact resistance IK06. Transparent screw-on cover with cut-out.

- protective insulation for a maximum of 5 modular units
- terminal strip set consisting of: one PE/N terminal each (1x 25 mm² and 1x 16 mm² screw terminals, 2x 4 mm² and 12x 2.5 mm² push-in terminals), mini DIN rail, installation instructions and mounting kit
- labelling tags for connected consumers
- 4 flexible cable and conduit entries Ø 20 mm for cable diameters 0–17 mm
- 1 flexible cable and conduit entry Ø 25 mm for cable diameters 0–22 mm
- 4 knockout openings Ø 20 mm at top and bottom
- 1 combined knockout opening Ø 20/25 mm at top and bottom
- 4 screw cover caps
- 2 stainless steel external fasteners
- cover strips for unused modular units
Brand
OBO BETTERMANN
Class
Small distributor
Colour
gray
Depth in mm
125
Height in mm
125
Manufacturer item number
2008844
Manufacturer type
SDB 05 PC
Mounting type
Surface-mounted
Number of rows
1.0000
Protection class (IP)
IP66
Width in mm
150
