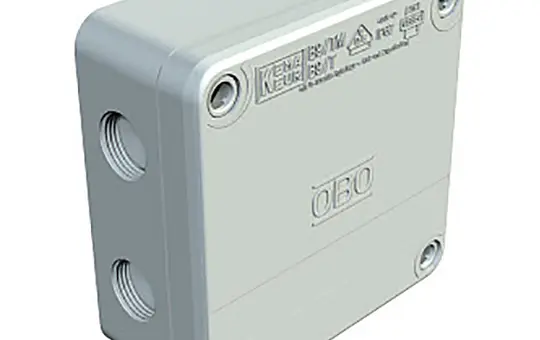

OBO BETTERMANN 2001853 cable junction box series B Puncture membrane | light gray | 98x98 mm

OBO BETTERMANN 2001853 cable junction box series B | Puncture membrane | light gray | 98x98 mm

Manufacturer: OBO BETTERMANN
Article no.: 20006495
EAN: 4012195540076
Manufacturer item number: 2001853
Manufacturer type: B 9 T M
Weight: 0,131 kg
Available on request
6,15 €
incl. VAT + shipping
pcs
The B9/T... damp-proof cable junction box consists of two different halogen-free plastic components: two additional entries in the base with a push-through membrane (for cable diameters up to 15 mm) and one with a push-through membrane (for cable diameters up to 15 mm) in the base area. When using the cable glands (additional strain relief), removing the membrane is not necessary (saving time). Protection class IP 67 with a push-through membrane and with a cable gland without removing the push-through membrane. Rated voltage 400 V; nominal cross-section 4 ÷ 6 mm². The cover is screwed on with four pre-assembled, captive quick-release fasteners (180°) and is sealable. The mounting holes are additionally injection-molded with a soft plastic component, for screw diameters of 5 mm (spacing 75 mm). Clear internal dimensions 98 x 98 x 40 mm.
Assembly
without
Brand
OBO BETTERMANN
Class
Junction boxes
Cover design
-
Depth in mm
266.00
Halogen free
Yes
Height in mm
113.00
Manufacturer item number
2001853
Manufacturer type
B 9 T M
Number of introductions
9
old Voltus number
1173653
Width in mm
113.00
Manufacturer information
OBO BETTERMANN
OBO Bettermann Vertrieb Deutschland GmbH & Co. KG
Hüingser Ring 52
58710 Menden
DE

info@obo.de
www.obo.de/
