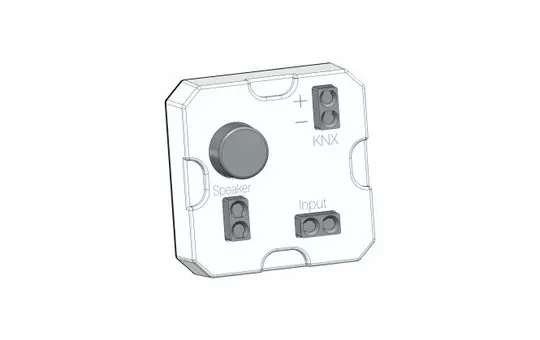

MÜLLER AS26.01knx KNX gong interface | without speakers

Manufacturer: MÜLLER

Article no.: 20003825

EAN: 4022709241504

Manufacturer item number: AS26.01knx

Manufacturer type: AS26.01knx Müller

Weight: 0,04 kg

In stock

Delivery: 2-3 business days

121,67 €

incl. VAT + shipping

pcs

- Gong for the KNX-TP building system technology - 12 predefined tones/melodies - 1 binary input - 10 input objects and 16 scenes configurable - External loudspeaker connectable (8 Ohm) - Adjustable volume - No auxiliary voltage required - Day/night operation function - Mute function - Clearly structured ETS - Easy handling and installation - Flush-mounted installation - Compact dimensions Technical data: Supply voltage: via KNX bus voltage Bus current: < 12 mA without output signal Bus system: KNX Input: 1 binary input Application software: ETS5 or higher Ambient temperature: -10 to +45 degrees Celsius Housing: self-extinguishing thermoplastic Dimensions (W x H x D): 38 x 38 x 15 mm Installation: Flush-mounted installation Connection type: Push-in terminal Protection type: IP 20 according to DIN EN 60529 Protection class: III when installed as intended

Binary inputs integrated: Yes
Brand: MÜLLER
Class: switching actuators
DALI Device Type: -
DALI-Standard: -
Different bus system: -
Division units: -
KNX: Yes
Manufacturer item number: AS26.01knx
Manufacturer type: AS26.01knx Müller
Mounting type: Surface-mounted
old Voltus number: 1699484
Type of transmission: -

The following links may lead to external websites. Voltus cannot be held responsible for the accuracy or timeliness of external content.

Produktdatenblatt

Manufacturer information

MÜLLER
Hugo Müller GmbH & Co KG
Karlstraße 90
78054 VS-Schwenningen
DE

info@hugo-mueller.de
hugo-mueller.de/

Hints

Bei einem nicht steckerfertigen elektrischen Gerät oder Bauteil dürfen Anschluss und Installation nur von einer qualifizierten Elektrofachkraft durchgeführt werden. Bitte beachte auch die Gebrauchsanweisung.

Recycling & disposal

Informationen zum Bereich Recycling & Entsorgung findest du hier: https://www.voltus.de/umweltschutz/.

Description

Specifications

Binary inputs integrated: Yes
Brand: MÜLLER
Class: switching actuators
DALI Device Type: -
DALI-Standard: -
Different bus system: -
Division units: -
KNX: Yes
Manufacturer item number: AS26.01knx
Manufacturer type: AS26.01knx Müller
Mounting type: Surface-mounted
old Voltus number: 1699484
Type of transmission: -

Documents
