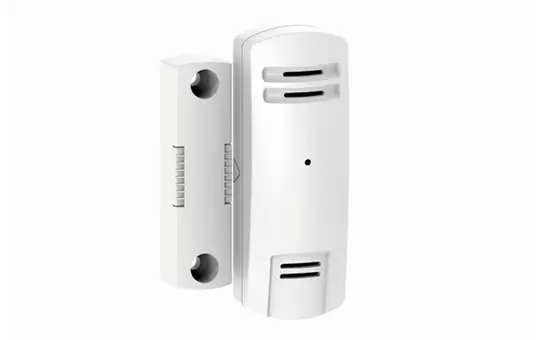

MÜLLER 686410rfs KNX RF door/window contact | standard

Manufacturer: MÜLLER

Article no.: 20003488

EAN: 4022709239792

Manufacturer item number: 686410rfs

Manufacturer type: 686 410 rfs Paladin

Weight: 0,06 kg

In stock

Delivery: 2-3 business days

116,93 €

incl. VAT + shipping

pcs

Door and window contact - Transmission of the status change via radio - Battery operated - Bi-directional KNX-RF communication - KNX-RF 1.R S-Mode Intended use: - is intended for use for the following tasks: Detecting when doors are opened/closed and transmitting the status change via radio - a KNX RF S-Mode line coupler is required for connection to the KNX bus - the device may only be used in dry indoor rooms - this device is not suitable for integration into alarm systems for security applications Technical data: Supply voltage: Battery operated 2 x 3 V CR2032 KNX medium: KNX RF 1.R application: ETS5 configuration mode Radio frequency: 868.3 MHz Signal strength: <10 dB Range: - Free field: 100 m - Indoor area approx. 30 m Ambient temperature: -10 to 70°C Dimensions (WxHxD): - Sensor: 78x28x23 mm - Magnet: 60x16x12 mm Mounting: Fastening with adhesive strips or screws Protection class: IP20

Brand: MÜLLER
Class: Window-door contact
Color: white
Different bus system: -
Division units: -
Installation location: Wall
KNX: Yes
KNX-TP: Yes
Manufacturer item number: 686410rfs
Manufacturer type: 686 410 rfs Paladin
old Voltus number: 1695780
Potential free: Yes
Type of transmission: Cable

The following links may lead to external websites. Voltus cannot be held responsible for the accuracy or timeliness of external content.

Bedien- & Installationsanleitung

Manufacturer information

MÜLLER
Hugo Müller GmbH & Co KG
Karlstraße 90
78054 VS-Schwenningen
DE

info@hugo-mueller.de
hugo-mueller.de/

Hints

Bei einem nicht steckerfertigen elektrischen Gerät oder Bauteil dürfen Anschluss und Installation nur von einer qualifizierten Elektrofachkraft durchgeführt werden. Bitte beachte auch die Gebrauchsanweisung.

Recycling & disposal

Informationen zum Bereich Recycling & Entsorgung findest du hier: https://www.voltus.de/umweltschutz/.

Description

Specifications

Brand: MÜLLER
Class: Window-door contact
Color: white
Different bus system: -
Division units: -
Installation location: Wall
KNX: Yes
KNX-TP: Yes
Manufacturer item number: 686410rfs
Manufacturer type: 686 410 rfs Paladin
old Voltus number: 1695780
Potential free: Yes
Type of transmission: Cable
