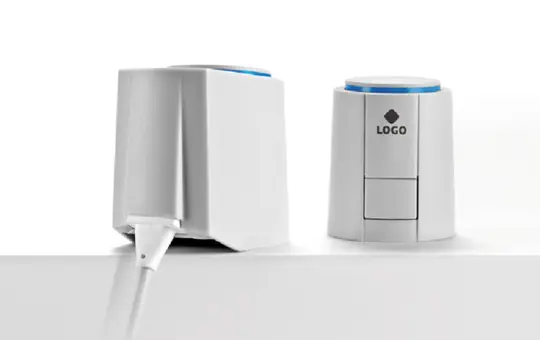

MÖHLENHOFF APR42405-00N Actuator Alpha 5 proportional | 24V, NC

Manufacturer: MÖHLENHOFF

Article no.: 20002287

EAN: 4031602007254

Manufacturer item number: APR42405-00N

Manufacturer type: APR42405-00N

Weight: 0,15 kg

Available on request

pcs

The OEM Actuator 5: Proportional DC is a thermoelectric actuator for discrete control of heating and cooling systems using a 0-10 V DC signal. Its main application area is building automation technology.

Features include a power-off-to (NC) design, only 1 watt power consumption, short response times for improved control behaviour, closing point monitoring, and a 'First-Open' function for increased safety. Easy plug-in installation, patented 100% protection against leaking valves, and certified by TÜV-SÜD.

Technical data: Operating voltage 24 V DC (+20%/-20%), control voltage range 0-10 V (reverse polarity protected), stroke 4 mm, thrust 100 N ± 5%, protection rating/class IP 54 / III.

Scope of delivery: OEM Actuator 5, 1 m connection cable (plug-in).

Brand: MÖHLENHOFF
Class: Actuators
Configuration: Normally closed (NC)
Manufacturer item number: APR42405-00N
Manufacturer type: APR42405-00N
Nominal voltage in V: 24
