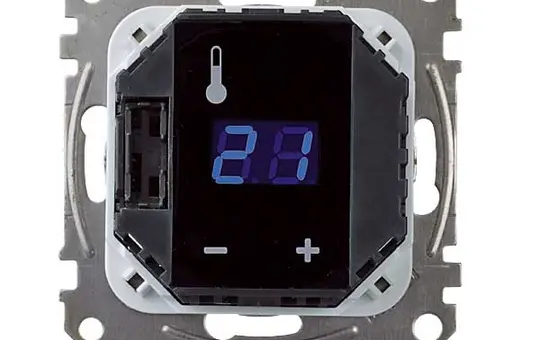

MERTEN MEG5775-0000 Room Temperature Controller Normally open, 230 V, display

MERTEN MEG5775-0000 Room Temperature Controller | Normally open, 230 V, display

Manufacturer: MERTEN
Article no.: 20036239
EAN: 4042811167622
Manufacturer item number: MEG5775-0000
Manufacturer type: MEG5775-0000
Weight: 0,124 kg
In stock
Delivery: 2-3 business days
Electrical appliance take-back
pcs
With the universal temperature controller insert with touch display, the room or floor temperature can be controlled. Operation is via a touch display. Electric underfloor heating systems, radiators, or actuators can be connected to the controller. The thermostat can be operated in three different modes:



Room air mode: The internal temperature sensor detects and regulates the room temperature.



Floor mode: The floor sensor, available as an accessory, detects the floor temperature and regulates the electric underfloor heating.



Dual mode: The internal temperature sensor detects and regulates the room temperature. At the same time, the floor sensor monitors the floor temperature and limits it to the preset maximum temperature. This mode is particularly recommended for temperature-sensitive parquet or laminate floors.



Rated voltage: AC 230 V, 50 Hz

Rated load (resistive): 16 A

Rated load (inductive): 1 A, cos φ 0.6

Energy class: IV 2 %.
Brand
MERTEN
Class
Temperature controller
Configuration
other
Connection
Three-/four-wire
Contact type
Closer
Function type
Heat
Manufacturer item number
MEG5775-0000
Manufacturer type
MEG5775-0000
Operating mode
push button
Power supply
230V AC
Series
1-M | Atelier-M | M-Plan | M-Plan II | M-Pure | M-Smart
