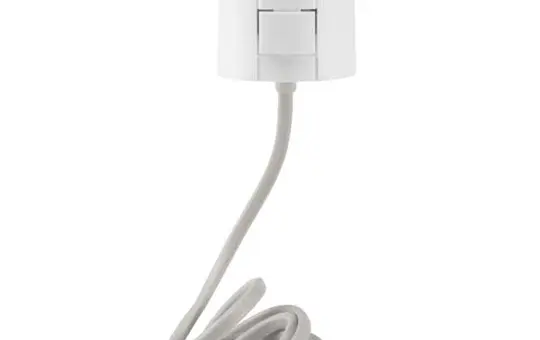

MERTEN 639125 Heating Actuator | 230V, NC

Manufacturer: MERTEN

Article no.: 20039118

EAN: 4042811049522

Manufacturer item number: 639125

Manufacturer type: 639125

Weight: 0,14 kg

In stock

Delivery: 4-8 business days

pcs

Thermoelectric valve actuator 230 V.

Thermoelectric valve actuator for opening and closing valves. For 2-point or PWM control of heating, air conditioning, and ventilation systems, individual room control of surface heating, and control of heating circuit distributors. Suitable for radiators, convectors, and chilled ceilings. Operation is via the heating actuator REG-K/6x24/230/0.16A, fan coil actuator REG-K, or a room temperature controller (230 V) with 2-point or PWM output. Valve adapters enable compatibility with a wide range of valve bodies and heating circuit distributors.

Functions:

First-open function: The actuator is factory-set to open when de-energised. This allows the heating to be operated during the shell construction phase.
Normally closed when de-energised.
Status indication (open, closed, intermediate positions).
Adjustment dial.
Plug-in connection cable.
Plug-in mounting.

Supply voltage: AC 230 V, 50/60 Hz.
Starting current: max. 350 mA for max. 100 ms.
Power consumption: 1 W.
Stroke: approx. 4 mm.

Brand: MERTEN
Class: Actuators
Configuration: Normally closed (NC)
Manufacturer item number: 639125
Manufacturer type: 639125
Nominal voltage in V: 230

The following links may lead to external websites. Voltus cannot be held responsible for the accuracy or timeliness of external content.

Deeplink

Manual

Manufacturer information

MERTEN
Schneider Electric GmbH
Gothaer Straße 29
40880 Ratingen
DE

de-schneider-service@se.com
www.se.com/de/de/

Hints

Bei einem nicht steckerfertigen elektrischen Gerät oder Bauteil dürfen Anschluss und Installation nur von einer qualifizierten Elektrofachkraft durchgeführt werden. Bitte beachte auch die Gebrauchsanweisung.

Recycling & disposal

Informationen zum Bereich Recycling & Entsorgung findest du hier: https://www.voltus.de/umweltschutz/.

Description

First-open function: The actuator is factory-set to open when de-energised. This allows the heating to be operated during the shell construction phase.
Normally closed when de-energised.
Status indication (open, closed, intermediate positions).
Adjustment dial.
Plug-in connection cable.
Plug-in mounting.

Supply voltage: AC 230 V, 50/60 Hz.
Starting current: max. 350 mA for max. 100 ms.
Power consumption: 1 W.
Stroke: approx. 4 mm.

Specifications

Brand: MERTEN
Class: Actuators
Configuration: Normally closed (NC)
Manufacturer item number: 639125
Manufacturer type: 639125
Nominal voltage in V: 230
