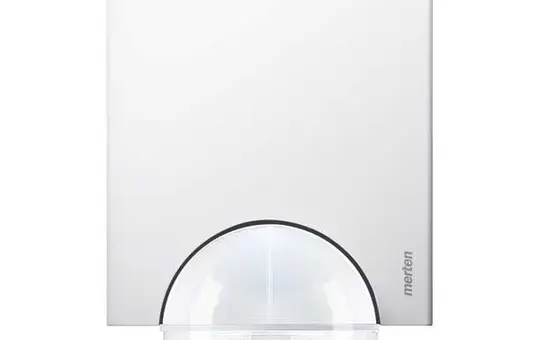

MERTEN 632519 KNX Surface-Mounted Wall Motion Detector ARGUS 220° | polar white

MERTEN 632519 KNX Surface-Mounted Wall Motion Detector ARGUS | 220° | polar white

Manufacturer: MERTEN
Article no.: 20034321
EAN: 4042811083083
Manufacturer item number: 632519
Manufacturer type: 632519
Weight: 0,37 kg
In stock
Delivery: 2-3 business days
Electrical appliance take-back
pcs
The KNX ARGUS 220 is an outdoor motion detector with a 220° detection angle for large façades and a 360° short-range area (approx. 4 m). It features a flexibly adjustable sensor head, maskable lens areas, an LED alignment aid, as well as a large wiring space with plug-in system; loop formation is possible. Installation on walls, ceilings, corners, and standpipes. Via KNX, five motion blocks with up to four functions, operating modes such as Normal, Master, Slave, or Safety Pause, as well as telegrams (1-bit, 1-byte, 2-byte) are available. Sensitivity, brightness (3–1000 lux), and staircase lighting time can be adjusted via ETS or potentiometer. Range up to 16 m, time 1 s–8 min or 3 s–152 h (ETS). Protection rating IP55. Supplied including cover plate, segments, screws, and dowels, colour polar white.
Acoustic sensor
No
Air pressure sensor
No
Area
Outside
BAB-Tec
No
Bluetooth
No
Brand
MERTEN
Brightness sensor
Yes
Casambi
No
Class
Motion detector
CO2 sensor
No
Colour
white
Crawl protection
Yes
DALI
No
DALI-2
No
Detection angle in °
220
Detection area
circular
Detection type/sensor type
Passive infrared
ENOcean
No
fits in 55 switch range
No
free@home
No
Frontal range in m
16
Gira One
No
Hager KNXeasy
No
Horizontal detection angle
220
Humidity sensor
No
Installation height in m
2.5
Installation location
Wall
Integrated constant light control
No
JUNG HOME
No
KNX
Yes
KNX-RF
No
KNX-Secure
No
KNX-TP
Yes
LED night light
No
Manufacturer item number
632519
Manufacturer type
632519
Manufacturer's colour
polar white
Material
Plastic
Matter
No
Mbus
No
Modbus
No
Modbus RTU
No
Modbus TCP
No
Mounting type
Surface-mounted
Protection class (IP)
IP55
Reach laterally in m
12
Remote controllable
No
Shelly
No
Siemens LOGO!
No
suitable for ceiling mounting
Yes
suitable for installation in switch ranges
No
suitable for wall mounting
Yes
Supply voltage
BUS voltage
Surface
matt
Temperature sensor
No
Theben LUXORliving
No
Thread
No
Type of transmission
Cable
VOC sensor
No
Wi-Fi
No
Wiser Home
No
with Netatmo
No
Zigbee
No
