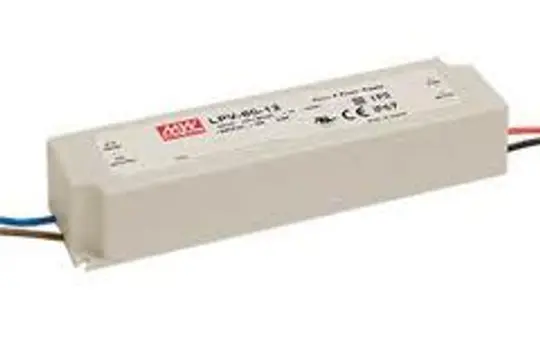

MEANWELL LPV-60-24 LPV 24 V LED switching power supply | 60W

Manufacturer: MEANWELL

Article no.: 20001393

EAN: 4021087006859

Manufacturer item number: LPV-60-24

Manufacturer type: SNT Class2 60W 24V/2,5A

Weight: 0,431 kg

In stock

Delivery: 2-3 business days

pcs

- Universal input - overload protection by current limitation, auto recovery - protected against short circuit, overload, overvoltage - IP67, for indoor and outdoor applications - UL1310 Class 2 - fixed output voltage

Technical data:
Input voltage range: 90...264V AC (47...63Hz) / 127...370V DC
Inrush current, max.: 60A
Overcurrent protection: 110...150%
Isolation voltage (I/P-O/P): 3000V AC
Operating temperature range: -30...+70 degrees C
Weight: 340g

Variants:
LPV-60-5 = PSU Class 2 40W 5V/8A CV
LPV-60-12 = PSU Class 2 60W 12V/5A CV
LPV-60-15 = PSU Class 2 60W 15V/4A CV
LPV-60-24 = PSU Class 2 60W 24V/2.5A CV
LPV-60-36 = PSU Class 2 60W 36V/1.67A CV
LPV-60-48 = PSU Class 2 60W 48V/1.25A CV

Active power factor correction (PFC): No
Brand: MEANWELL
Casambi: No
Class: lighting power supplies
DALI: No
DMX: No
KNX: No
Manufacturer item number: LPV-60-24
Manufacturer type: SNT Class2 60W 24V/2,5A
Output current in mA: 2500
Output type: Constant voltage (CV)
Output voltage: 24 V
Power in W: 60
Protection class (IP): IP67
with dimming function: No

The following links may lead to external websites. Voltus cannot be held responsible for the accuracy or timeliness of external content.

Data Sheet

Manufacturer information

MEANWELL
MEAN WELL ENTERPRISES CO., LTD
No.28, Wuquan 3rd Rd
24891 New Taipei City
TW

info@meanwell.com
www.meanwell.com/

Verantwortliche Person in der EU:
MEAN WELL EUROPE N.V.
Langs de Werf 8
1185XT Amstelveen
NL

info@meanwell.eu
www.meanwell.eu

Hints

Bei einem nicht steckerfertigen elektrischen Gerät oder Bauteil dürfen Anschluss und Installation nur von einer qualifizierten Elektrofachkraft durchgeführt werden. Bitte beachte auch die Gebrauchsanweisung.

Recycling & disposal

Informationen zum Bereich Recycling & Entsorgung findest du hier: https://www.voltus.de/umweltschutz/.

Description

Specifications

Active power factor correction (PFC): No
Brand: MEANWELL
Casambi: No
Class: lighting power supplies
DALI: No
DMX: No
KNX: No
Manufacturer item number: LPV-60-24
Manufacturer type: SNT Class2 60W 24V/2,5A
Output current in mA: 2500
Output type: Constant voltage (CV)
Output voltage: 24 V
Power in W: 60
Protection class (IP): IP67
with dimming function: No
