MDT VC-08P82.01S Touchpanel VisuControl Plus | Secure | 8 inches

Manufacturer: MDT

Article no.: 20086402

EAN: 4251916147655

Manufacturer item number: VC-08P82.01S

Manufacturer type: VC-08P82.01S

Weight: 1,02 kg

Available on request

pcs

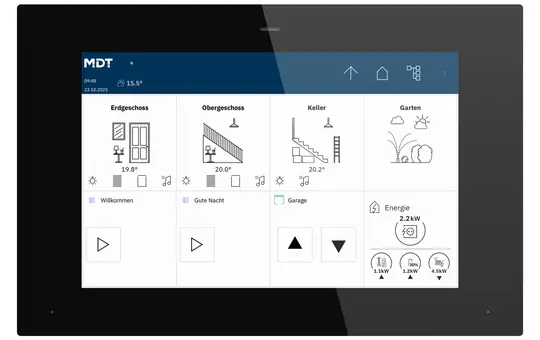

KNX Touch Panel VisuControl Plus, 8" (20.3 cm), Secure.

High-resolution capacitive glass touch display (1280 × 800 px) for visualising and controlling lighting, shading, room temperature, scenes, multimedia, weather data, and much more. Can display up to 500 elements. Equipped with speaker and microphone for SIP door intercom function (VoIP server required). Integrated day/week/astro timer (125 channels × 10 switching times), notifications via text/sound, IP camera integration, remote access via app (Android/iOS/Windows). Digital I/O for doorbell button, brightness and proximity sensor, user management (10 PIN codes), favourites page, logic functions, and presence simulation. Features KNX Data Secure, cloud backup, USB recovery, and cleaning function. Dimensions (H × W × D): 153 × 233 × 16 mm.

BAB-Tec: No
Bluetooth: No
Brand: MDT
Casambi: No
Class: Touch panels
Colour: black
Connections: KNX
DALI: No
ENOcean: No
free@home: No
Gira One: No
Hager KNXeasy: No
JUNG HOME: No
KNX: Yes
KNX-RF: No
KNX-Secure: Yes
KNX-TP: Yes
Manufacturer item number: VC-08P82.01S
Manufacturer type: VC-08P82.01S
Manufacturer's Description: KNX Touch Panel VisuControl Plus, 8-inch / 20.3 cm display, Secure
Matter: No
Mbus: No
Modbus: No
Modbus RTU: No
Modbus TCP: No
Mounting on switch box possible: No
Mounting type: flush-mounted
Operating mode: Touch
Power supply: 24VDC
Screen diagonal in inches: 8
Shelly: No
Siemens LOGO!: No
Theben LUXORliving: No
Thread: No
Type of transmission: Cable
Wi-Fi: No
Wiser Home: No
with Netatmo: No
Zigbee: No

The following links may lead to external websites. Voltus cannot be held responsible for the accuracy or timeliness of external content.

Data Sheet

Manufacturer information

MDT
MDT technologies GmbH
Papiermühle 1
51766 Engelskirchen
DE

knx@mdt.de
www.mdt.de/
