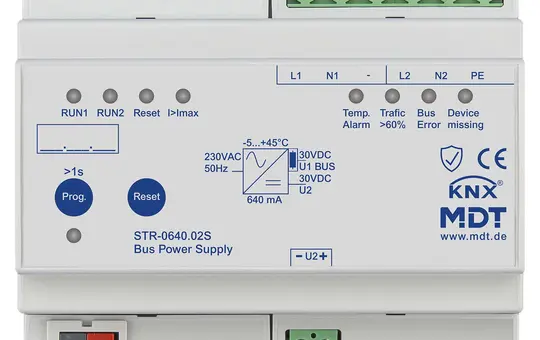

MDT STR-0640.02S KNX Bus Power Supply 640 mA, diagnostic function, redundant, secure

MDT STR-0640.02S KNX Bus Power Supply | 640 mA, diagnostic function, redundant, secure

Manufacturer: MDT
Article no.: 20094246
EAN: 4251916100254
Manufacturer item number: STR-0640.02S
Manufacturer type: STR-0640.02S
Weight: 0,439 kg
Available on request
Electrical appliance take-back
pcs

The item is a new release and is expected to be available for the first time from October.



KNX redundant bus power supply with diagnostics, 6TE REG, 640 mA, Secure. Version with a rated current of 640 mA. Redundant bus power supply to increase operational reliability. KNX Data Secure. KNX bus power supply with integrated choke. Two integrated power supplies for redundancy. Supply voltage 2 x 230 V AC (separate RCD circuits possible). Rated current 640 mA, continuous current 900 mA, peak current 1200 mA. In the event of a mains failure or internal power supply failure, the KNX bus voltage is maintained via the second power supply. Failure message via telegram. Short-circuit proof. Overload protected. Additional non-choked output U2. Integrated bus coupler with diagnostic functions: bus voltage, bus current, bus overload. Mains failure/power restoration. All events are stored with a timestamp in the ring buffer. Reading of the ring buffer via 14-byte telegram.
BAB-Tec
No
Bluetooth
No
Brand
MDT
Casambi
No
Class
Bus coupler
DALI
No
Division units
6 TE
ENOcean
No
free@home
No
Gira One
No
Hager KNXeasy
No
Installation location
distribution cabinet
JUNG HOME
No
KNX
Yes
KNX-RF
No
KNX-Secure
Yes
KNX-TP
No
Manufacturer item number
STR-0640.02S
Manufacturer type
STR-0640.02S
Output current in mA
640
Secondary voltage
No
Shelly
No
Siemens LOGO!
No
Theben LUXORliving
No
Thread
No
Type of transmission
Cable
Wi-Fi
No
Wiser Home
No
with diagnostic function
Yes
with Netatmo
No
with UPS
No
Zigbee
No
Manufacturer information
MDT
MDT technologies GmbH
Papiermühle 1
51766 Engelskirchen
DE

knx@mdt.de
www.mdt.de/
