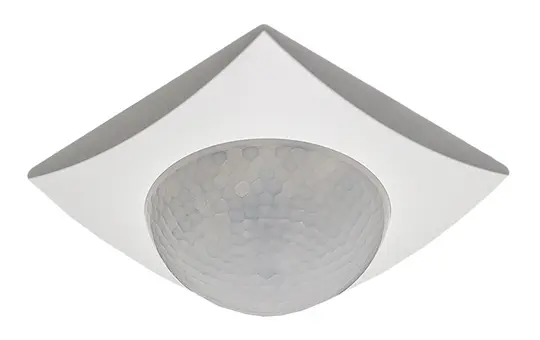

MDT SCN-P360D4.03 KNX Presence Detector | 4 sensors | white

Manufacturer: MDT

Article no.: 20046501

EAN: 4251916111434

Manufacturer item number: SCN-P360D4.03

Manufacturer type: SCN-P360D4.03

Weight: 0,099 kg

In stock

Delivery: 2-3 business days

pcs

KNX presence detector 360° with 4 sensors, matt pure white.

Version for ceiling mounting in the switch box. Extensive application.

4 sensors with lens for presence detection. Adjustable standby and presence sensitivity for day, night and alarm. Range 16 m Ø, presence 8 m Ø.

4 light channels, sensors evaluated individually. 1 HVAC and 1 alarm/notification channel.

Short-term presence to reduce the follow-up time. Intelligent switching function for automatic and manual operation.

Lock and forced function with fallback time. Extensive day/night function with 2nd switching object.

Integrated white LED night light. Orientation light function for leaving the room.

Avoidance of false alarms for the alarm channel through reduced sensitivity and adjustable observation window.

3 years product warranty.

Acoustic sensor: No
Air pressure sensor: No
Area: Inside
BAB-Tec: No
Bluetooth: No
Brand: MDT
Brightness sensor: Yes
Casambi: No
Class: Presence detector
CO2 sensor: No
Colour: white
Crawl protection: No
DALI: No
DALI-2: No
Detection angle in °: 360
Detection area: circular
Detection type/sensor type: Passive infrared
ENOcean: No
fits in 55 switch range: No
free@home: No
Gira One: No
Hager KNXeasy: No
Humidity sensor: No
Installation height in m: 2.5
Installation location: Ceiling
Integrated constant light control: No
JUNG HOME: No
KNX: Yes
KNX-RF: No
KNX-Secure: No
KNX-TP: Yes
LED night light: Yes
Manufacturer item number: SCN-P360D4.03
Manufacturer type: SCN-P360D4.03
Manufacturer's colour: white
Manufacturer's Description: KNX Presence Detector 360° with 4 sensors, Pure White matt finish
Material: Plastic
Matter: No
Mbus: No
Modbus: No
Modbus RTU: No
Modbus TCP: No
Mounting type: flush-mounted
Number of areas: 4
Protection class (IP): IP20
Reach laterally in m: 8
Remote controllable: No
Shelly: No
Siemens LOGO!: No
suitable for ceiling mounting: Yes
suitable for installation in switch ranges: No
suitable for wall mounting: No
Surface: matt
Temperature sensor: No
Theben LUXORliving: No
Thread: No
Type of transmission: Cable
VOC sensor: No
Wi-Fi: No
Wiser Home: No
with Netatmo: No
Zigbee: No

The following links may lead to external websites. Voltus cannot be held responsible for the accuracy or timeliness of external content.

Manual

Data Sheet

Manufacturer information

MDT
MDT technologies GmbH
Papiermühle 1
51766 Engelskirchen
DE

knx@mdt.de
www.mdt.de/

Hints

Bei einem nicht steckerfertigen elektrischen Gerät oder Bauteil dürfen Anschluss und Installation nur von einer qualifizierten Elektrofachkraft durchgeführt werden. Bitte beachte auch die Gebrauchsanweisung.

Recycling & disposal

Informationen zum Bereich Recycling & Entsorgung findest du hier: https://www.voltus.de/umweltschutz/.
