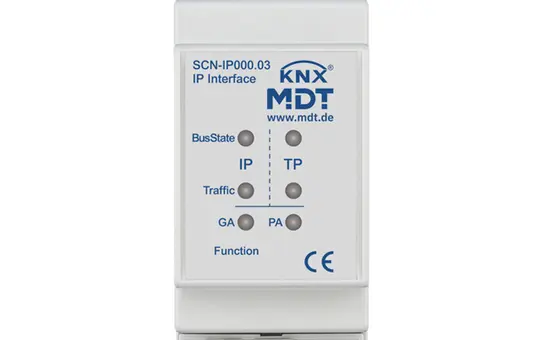

MDT SCN-IP000.03 KNX IP interface | REG

Manufacturer: MDT

Article no.: 20002979

EAN: 4251916100100

Manufacturer item number: SCN-IP000.03

Manufacturer type: SCN-IP000.03

Weight: 0,075 kg

Available on request

162,94 €

incl. VAT + shipping

pcs

KNX IP interface with IP Secure and Data Secure, 2 modules, REG. With email and time server functions. For bidirectional connection between PC and KNX via TCP/IP. Four simultaneous connections possible. Bus programming possible via TCP/IP. Power supply via KNX bus; no external power supply required. Encrypted transmission when sending emails. Time server function for sending the date and time to the KNX bus. Firmware update function. Supports extended group addresses. KNX IP Secure and KNX Data Secure (from ETS 5.7). Secured access to the KNX bus via IP Secure with a security key. Fast application download (long frame support for ETS 5). 3-year product warranty.

Brand: MDT
Class: KNX IP interface
Different bus system: -
Division units: 2
Installation location: distribution cabinet
KNX: Yes
KNX-IP-Interface: Yes
KNX-Secure: Yes
KNX-TP: Yes
Manufacturer item number: SCN-IP000.03
Manufacturer type: SCN-IP000.03
old Voltus number: 1684427
Type of transmission: Cable

The following links may lead to external websites. Voltus cannot be held responsible for the accuracy or timeliness of external content.

Bedien- & Installationsanleitung 2

Produktdatenblatt

Bedien- & Installationsanleitung

Manufacturer information

MDT
MDT technologies GmbH
Papiermühle 1
51766 Engelskirchen
DE

knx@mdt.de
www.mdt.de/

Hints

Bei einem nicht steckerfertigen elektrischen Gerät oder Bauteil dürfen Anschluss und Installation nur von einer qualifizierten Elektrofachkraft durchgeführt werden. Bitte beachte auch die Gebrauchsanweisung.

Recycling & disposal

Informationen zum Bereich Recycling & Entsorgung findest du hier: https://www.voltus.de/umweltschutz/.

Description

Specifications

Brand: MDT
Class: KNX IP interface
Different bus system: -
Division units: 2
Installation location: distribution cabinet
KNX: Yes
KNX-IP-Interface: Yes
KNX-Secure: Yes
KNX-TP: Yes
Manufacturer item number: SCN-IP000.03
Manufacturer type: SCN-IP000.03
old Voltus number: 1684427
Type of transmission: Cable
