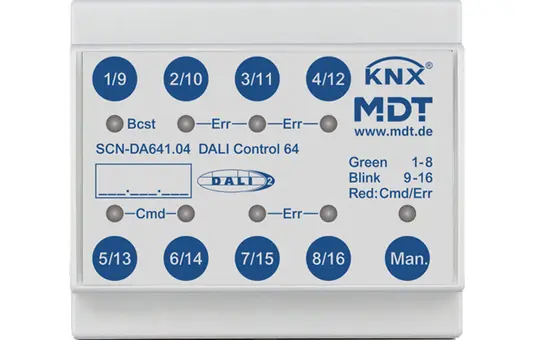

MDT SCN-DA641.04 KNX DALI gateway | 1-fold, standard

Manufacturer: MDT

Article no.: 20004028

EAN: 4251916130718

Manufacturer item number: SCN-DA641.04

Manufacturer type: SCN-DA641.04

Weight: 0,126 kg

In stock

Delivery: 2-3 business days

302,85 €

incl. VAT + shipping

pcs

DALI Control 64 Gateway, 4 units, REG, KNX, MDT. The gateway is DALI-2 certified. Color setting via HSV control. Individual control of up to 64 ECGs / 16 DALI groups. Supports DALI and DALI-2 standards, as well as DALI ECG DT6/DT8. Innovative HSV color control, RGB, RGBW and XY color according to DALI DT8 standard (16 DALI groups). Tunable White color temperature control (16 DALI groups). Integrated color control module for time-dependent control of the light color with up to 300 steps. Operating modes: normal operation, continuous operation, night operation, stairwell operation and panic mode, manual operation. 16 scenes with individual dimming times. Energy-saving function for switching off the ECGs in the DALI groups (via additional KNX switching actuator). Error detection of lamp errors and faulty ECGs. Quick ECG replacement. Free DCA app (ETS5) for commissioning the DALI bus system and configuring scenes and time control. Commissioning with ETS5.

Additional plug-in required: Yes
Brand: MDT
Class: DALI gateway
DALI: Yes
DALI-2: Yes
Different bus system: -
Division units: 4
DT6: Yes
DT8: Yes
Effects control: Yes
Group control: Yes
HSV: Yes
Individual control: Yes
Integrated DALI power supply: Yes
KNX: Yes
KNX-TP: Yes
Local/manual operation: Yes
Manufacturer item number: SCN-DA641.04
Manufacturer type: SCN-DA641.04
Mounting type: Series installation
Number of channels: 1
Number of DALI groups: 16
Number of participants: 64
old Voltus number: 1700418
RGB: Yes
RGBW: Yes
Scenes: Yes
Target protocol: DALI
TW: Yes
Type of transmission: Cable
XY: Yes

The following links may lead to external websites. Voltus cannot be held responsible for the accuracy or timeliness of external content.

Produktdatenblatt

Bedien- & Installationsanleitung

Manufacturer information

MDT
MDT technologies GmbH
Papiermühle 1
51766 Engelskirchen
DE

knx@mdt.de
www.mdt.de/

Hints

Bei einem nicht steckerfertigen elektrischen Gerät oder Bauteil dürfen Anschluss und Installation nur von einer qualifizierten Elektrofachkraft durchgeführt werden. Bitte beachte auch die Gebrauchsanweisung.

Recycling & disposal

Informationen zum Bereich Recycling & Entsorgung findest du hier: https://www.voltus.de/umweltschutz/.
