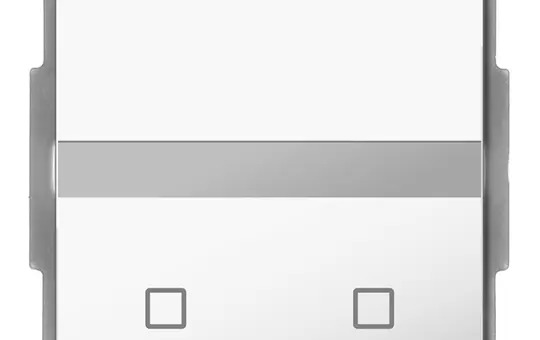

MDT SCN-BWM63T.02 Motion Detector 63 with temperature sensor

MDT SCN-BWM63T.02 Motion Detector 63 | with temperature sensor

Manufacturer: MDT
Article no.: 20003901
EAN: 4251916111366
Manufacturer item number: SCN-BWM63T.02
Manufacturer type: SCN-BWM63T.02
Weight: 0,061 kg
In stock
Delivery: 2-3 business days
Electrical appliance take-back
pcs
KNX Motion Detector/Automatic Switch TS 63, Studio White Glossy. Version with temperature sensor and 2 sensor buttons. Mounted in a flush-mounted box. Integrated bus coupler. Suitable for 63 mm standard switch programmes, e.g.: Busch-Jaeger future linear, solo, carat and Busch-axcent.



Motion detector with light sensor and 2 sensors. Two sensor buttons for any functions. Temperature sensor for detecting room temperature. Detection angle H 180° / V 15°, range 6–10 m Ø. Suitable for pets up to 12 kg. Trigger sensitivity for day/night/presence individually adjustable. Detection of movement direction. 2 light channels, 1 HVAC and alarm channel. Short-term presence to reduce run-on time. Master/slave function, scenes and logic functions. Integrated white LED night light. Day/night function, orientation light function. Lock and forced function with fallback time. External push-button input for automatic and manual operation. Recommended mounting height 1.05 – 1.20 m. Integrated bus coupler.
Acoustic sensor
No
Air pressure sensor
No
Area
Inside
BAB-Tec
No
Bluetooth
No
Brand
MDT
Brightness sensor
Yes
Casambi
No
Class
Motion detector
CO2 sensor
No
Colour
white
Crawl protection
No
DALI
No
DALI-2
No
Detection area
circular
Detection type/sensor type
Passive infrared
ENOcean
No
free@home
No
Frontal range in m
5
Gira One
No
Hager KNXeasy
No
Horizontal detection angle
180
Humidity sensor
No
Installation height in m
1.1
Installation location
Wall
Integrated constant light control
No
JUNG HOME
No
KNX
Yes
KNX-RF
No
KNX-Secure
No
KNX-TP
Yes
LED night light
No
Manufacturer item number
SCN-BWM63T.02
Manufacturer type
SCN-BWM63T.02
Manufacturer's Description
KNX Motion Detector/Automatic Switch TS 63, studio white glossy finish
Material
Plastic
Matter
No
Mbus
No
Modbus
No
Modbus RTU
No
Modbus TCP
No
Mounting type
flush-mounted
Number of areas
2
Reach laterally in m
5
Remote controllable
No
Shelly
No
Siemens LOGO!
No
suitable for ceiling mounting
No
suitable for installation in switch ranges
Yes
suitable for wall mounting
Yes
Surface
glossy
Temperature sensor
Yes
Theben LUXORliving
No
Thread
No
Type of transmission
Cable
VOC sensor
No
Wi-Fi
No
Wiser Home
No
with Netatmo
No
Zigbee
No
