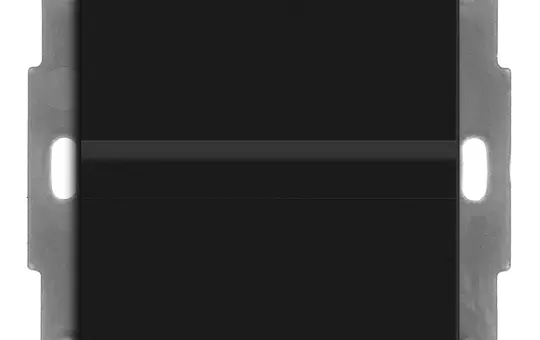

MDT SCN-BWM5506.02 motion detector 55 | standard | matt black

Manufacturer: MDT

Article no.: 20041898

EAN: 4251916112820

Manufacturer item number: SCN-BWM5506.02

Manufacturer type: SCN-BWM5506.02

Weight: 0,036 kg

In stock

Delivery: 2-3 business days

94,27 €

incl. VAT + shipping

pcs

KNX motion detector/automatic switch 55, matte black. Mounts in switch box. Integrated bus coupling unit. Suitable for 55 mm switch ranges, e.g., GIRA E2 or BERKER B3, B7 or JUNG A550 or MERTEN M-Pure. Motion detector with light sensor and 2 sensors. Detection angle H 180° / V 15°, range 6-10 m Ø. Suitable for pets up to 12 kg. Trigger sensitivity for day/night/presence can be individually adjusted. 2 light channels, 1 HVAC and alarm channel. Detection of the direction of movement. Short-term presence to reduce the switch-off time. Master/slave function, scenes, and logic functions. Integrated white LED night light. Day/night function, orientation light function. Lock and forced function with release time. External button input for automatic and manual operation. Recommended mounting height 1.05 - 1.20 m. Integrated bus coupling unit.

Brand: MDT
Brightness sensor: Yes
Class: Motion detector
Color: black
Detection type/sensor type: Passive infrared
Different bus system: -
fits in 55 switch range: Yes
Horizontal detection angle: 180
Installation height in m: 1.10
Installation location: Wall
KNX: Yes
KNX-TP: Yes
Manufacturer item number: SCN-BWM5506.02
Manufacturer type: SCN-BWM5506.02
Manufacturer's color: black
Mounting type: flush-mounted
Number of areas: 2
old Voltus number: 1707508
suitable for installation in switch ranges: Yes
suitable for wall mounting: Yes
Surface: matt
Type of transmission: Cable
