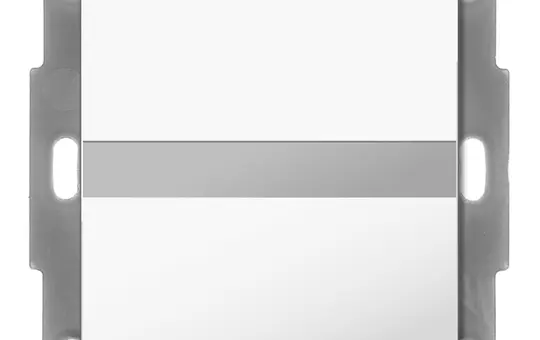

MDT SCN-BWM55.02 motion detector 55 | without temperature sensor | pure white matt

Manufacturer: MDT

Article no.: 20003432

EAN: 4251916111304

Manufacturer item number: SCN-BWM55.02

Manufacturer type: SCN-BWM55.02

Weight: 0,036 kg

In stock

Delivery: 2-3 business days

94,27 €

incl. VAT + shipping

pcs

KNX motion detector/automatic switch 55, pure white matt. Mounts in switch box. Integrated bus coupling unit. Suitable for 55 mm switch ranges, e.g.: GIRA Standard 55, E2, E22, Event, Esprit or BERKER S1, B3, B7 or JUNG A 500, A PLUS, A CREATION, AS 500, A 550, A FLOW or MERTEN 1M, M-Smart, M-Plan, M-Pure. Motion detector with light sensor and 2 sensors. Detection angle H 180° / V 15°, range 6-10 m Ø. Suitable for pets up to 12 kg. Trigger sensitivity for day/night/presence can be individually adjusted. 2 light channels, 1 HVAC and alarm channel. Detection of the direction of movement. Short-term presence to reduce the switch-off time. Master/slave function, scenes and logic functions. Integrated white LED night light. Day/night function, orientation light function. Lock and forced function with release time. External push button input for automatic and manual operation. Recommended mounting height 1.05 - 1.20 m. Integrated bus coupling unit. 3-year product warranty.

Brand: MDT
Brightness sensor: Yes
Class: Motion detector
Color: white
Detection area: circular
Detection type/sensor type: Passive infrared
Different bus system: -
fits in 55 switch range: Yes
Frontal range in m: 5.00
Horizontal detection angle: 180
Installation height in m: 1.10
Installation location: Wall
KNX: Yes
KNX-TP: Yes
Manufacturer item number: SCN-BWM55.02
Manufacturer type: SCN-BWM55.02
Manufacturer's color: reinweiß
Mounting type: flush-mounted
Number of areas: 2
old Voltus number: 1695579
Protection class (IP): -
Reach laterally in m: 5.00
suitable for installation in switch ranges: Yes
suitable for wall mounting: Yes
Surface: matt
Type of transmission: Cable

The following links may lead to external websites. Voltus cannot be held responsible for the accuracy or timeliness of external content.

Produktdatenblatt

Bedien- & Installationsanleitung

Manufacturer information

MDT
MDT technologies GmbH
Papiermühle 1
51766 Engelskirchen
DE

knx@mdt.de
www.mdt.de/

Hints

Bei einem nicht steckerfertigen elektrischen Gerät oder Bauteil dürfen Anschluss und Installation nur von einer qualifizierten Elektrofachkraft durchgeführt werden. Bitte beachte auch die Gebrauchsanweisung.

Recycling & disposal

Informationen zum Bereich Recycling & Entsorgung findest du hier: https://www.voltus.de/umweltschutz/.

Description

Specifications

Brand: MDT
Brightness sensor: Yes
Class: Motion detector
Color: white
Detection area: circular
Detection type/sensor type: Passive infrared
Different bus system: -
fits in 55 switch range: Yes
Frontal range in m: 5.00
Horizontal detection angle: 180
Installation height in m: 1.10
Installation location: Wall
KNX: Yes
KNX-TP: Yes
Manufacturer item number: SCN-BWM55.02
Manufacturer type: SCN-BWM55.02
Manufacturer's color: reinweiß
Mounting type: flush-mounted
Number of areas: 2
old Voltus number: 1695579
Protection class (IP): -
Reach laterally in m: 5.00
suitable for installation in switch ranges: Yes
suitable for wall mounting: Yes
Surface: matt
Type of transmission: Cable
