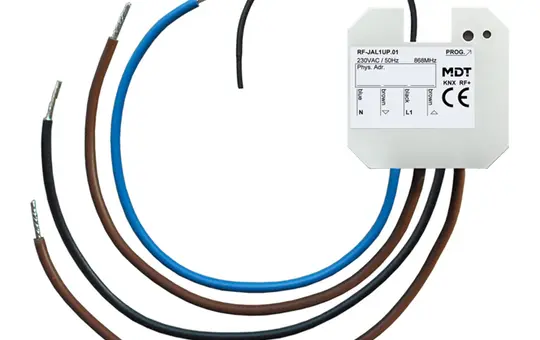

MDT RF-JAL1UP.01 KNX-RF Radio Shutter Actuator | 1-fold

Manufacturer: MDT

Article no.: 20001351

EAN: 4251916148591

Manufacturer item number: RF-JAL1UP.01

Manufacturer type: RF-JAL1UP.01

Weight: 0,064 kg

Available on request

pcs

Attention! This item has a successor or replacement product, which you can access here: 20073596

KNX RF+ Wireless Shutter Actuator 1-gang, flush-mounted, 10 A, 230 V AC. For installation in the flush-mounted box. Roller shutter motors 230 V AC up to 300 W. With monostable relays, current max. 10 A with resistive load. For operation within the EU, 868 MHz. New KNX RF+ protocol in system mode. Commissioning from ETS 5. Operating mode shutter/blind adjustable. Running, pause and step time freely adjustable. 1-bit automatic control and sun protection function. 8-bit positioning for height and slat. 8 scenes per channel. Alarm, central and lock functions. Adjustable behaviour in case of bus voltage failure/recovery. Installation in the flush-mounted box. Connection via MDT KNX RF+ wireless line coupler. For modernisation without laying bus cables. Power supply 230 V AC. Dimensions (W x H x D): 41 mm x 41 mm x 22 mm. 3 years product warranty.

BAB-Tec: No
Binary inputs integrated: No
Blinds: Yes
Bluetooth: No
Brand: MDT
Casambi: No
Class: Blind actuators
DALI: No
Dimming: No
ENOcean: No
Fan coil: No
free@home: No
Gira One: No
Hager KNXeasy: No
JUNG HOME: No
KNX: Yes
KNX-RF: Yes
KNX-Secure: No
KNX-TP: No
Local/manual operation: No
Manufacturer item number: RF-JAL1UP.01
Manufacturer type: RF-JAL1UP.01
Matter: No
max. switching power in W: 300
Mbus: No
Modbus: No
Modbus RTU: No
Modbus TCP: No
Mounting type: flush-mounted
Number of outputs: 1
Rated voltage outputs: 230V AC
Shelly: No
Siemens LOGO!: No
SMI control: No
Sun position calculation: No
Theben LUXORliving: No
Thread: No
Travel time measurement: No
Type of transmission: radio
Ventilation function: Yes
Wi-Fi: No
Wiser Home: No
with Netatmo: No
Zigbee: No
