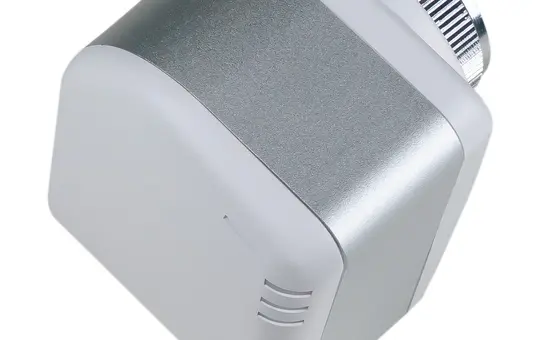

MDT RF-HVA1ILB.01S KNX RF+ Radiator Thermostat Industrial, with long-life battery, Secure

MDT RF-HVA1ILB.01S KNX RF+ Radiator Thermostat | Industrial, with long-life battery, Secure

Manufacturer: MDT
Article no.: 20073612
EAN: 4251916114343
Manufacturer item number: RF-HVA1ILB.01S
Manufacturer type: RF-HVA1ILB.01S
Weight: 0,225 kg
In stock
Delivery: 2-3 business days
Electrical appliance take-back
pcs
If you want to make your radiators smart without tearing up walls or laying cables, this radio actuator is the perfect tool. The MDT RF-HVA1ILB.01S brings KNX wirelessly, securely, and fully ETS-compatible directly to the radiator.

  • KNX RF+ Radio Technology: Operates in System Mode with KNX Data Secure for encrypted communication and full ETS integration.
  • Universal Valve Compatibility: Direct connection with M30 x 1.5 mm and adapters for Danfoss RA, RAV, RAVL included.
  • Battery Operation: 2 x AA batteries or long-life battery for up to two years of runtime. Easily replaceable, no mains connection required.
  • ETS Parameterisation: Control values can be continuous or switching, valve protection function, manual control, operating modes, and scene control.
  • Installation-friendly: Compact dimensions (86 x 60 x 55 mm), protection class IP20, ideal for radiators and underfloor heating.


The RF-HVA1ILB.01S is a fully functional KNX actuator for radiators and underfloor heating. Only completely wireless. It uses the KNX RF+ protocol in System Mode and is therefore fully ETS programmable. Integration is done via a KNX RF+ line coupler, e.g., from MDT. Thanks to KNX Data Secure, communication is encrypted and secure against tampering.

Installation is very simple: the actuator is screwed directly onto the radiator valve (M30 x 1.5 mm), adapters for Danfoss RA, RAV, and RAVL are included in the scope of delivery. Power is supplied by batteries, so no cables are necessary. The control value can be configured in the ETS as continuous or switching, depending on the heating type and valve model.

The valve protection function is also integrated: during longer inactivity, the valve is cyclically moved to prevent calcification. Manual control allows you to open or close the valve directly, independent of the bus. In the ETS, you can define operating modes such as comfort, night, or frost protection and recall them via scenes or time control.

The radio range is up to 150 m in open field, depending on wall material and layout inside buildings. The RF-HVA1ILB.01S can be integrated into Home Assistant via KNX integration. The ETS parameterisation allows you to individually configure setpoint shifts, operating modes, and feedback. Integration into central functions or heating logics is also possible.

With its compact design, the actuator fits into almost any environment. Protection class IP20 makes it suitable for dry indoor rooms. The dimensions of 86 x 60 x 55 mm allow discreet mounting directly on the radiator. Radio communication takes place at 868 MHz, compliant with the EU standard for KNX RF+.

MDT develops and produces its KNX components in Germany and stands for quality, innovation, and practical relevance. The RF-HVA1ILB.01S is part of the radio series specially designed for retrofitting and modernisation. With over 3 years warranty and continuous development, MDT offers reliable solutions for smart heating control. The close integration with ETS and support of KNX Secure make MDT products the first choice for system integrators and demanding prosumers.
Amazon Alexa
No
Apple HomeKit
No
BAB-Tec
No
Blinds
No
Bluetooth
No
Brand
MDT
Casambi
No
Class
Actuators
DALI
No
Dimming
No
ENOcean
No
Fan coil
No
free@home
No
Gira One
No
Google Assistant
No
Hager KNXeasy
No
JUNG HOME
No
KNX
Yes
KNX-RF
Yes
KNX-Secure
Yes
KNX-TP
No
Local/manual operation
No
Manufacturer item number
RF-HVA1ILB.01S
Manufacturer type
RF-HVA1ILB.01S
Manufacturer's Description
KNX RF+ Radiator Thermostat Industry, with long-life battery, Secure
Matter
No
Mbus
No
Modbus
No
Modbus RTU
No
Modbus TCP
No
Mounting type
radiator valve
Samsung SmartThings
No
Shelly
No
Siemens LOGO!
No
Switch
No
Theben LUXORliving
No
Thread
No
Type of transmission
radio
Wi-Fi
No
Wiser Home
No
with Netatmo
No
Zigbee
No

The following links may lead to external websites. Voltus cannot be held responsible for the accuracy or timeliness of external content.

Data Sheet
Manufacturer information
MDT
MDT technologies GmbH
Papiermühle 1
51766 Engelskirchen
DE

knx@mdt.de
www.mdt.de/
