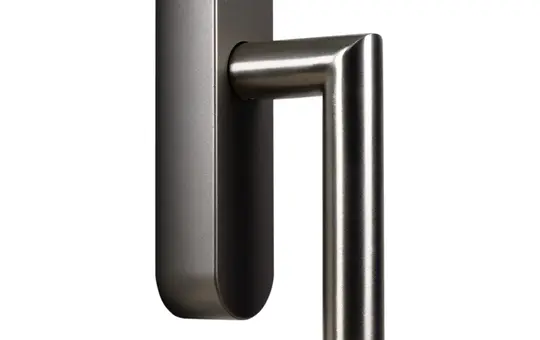

MDT RF-FGES.01S KNX RF+ Window Handle | Secure | stainless steel

Manufacturer: MDT

Article no.: 20073608

EAN: 4251916114374

Manufacturer item number: RF-FGES.01S

Manufacturer type: RF-FGES.01S

Weight: 0,36 kg

In stock

Delivery: 2-3 business days

pcs

The MDT RF-FGES.01S is far more than just a simple window handle. It is a precise sensor and communication module that integrates seamlessly into modern KNX systems. With its ability to detect and reliably report the exact position of a window, it opens up new possibilities for automation, energy efficiency, and burglary protection. Designed for use with the KNX RF+ wireless standard, it combines high-quality mechanics with reliable radio technology and security features according to KNX Secure.

Function and Application

The RF-FGES.01S detects the three classic handle positions: closed, tilted, and open. This differentiation is crucial for intelligent automation scenarios: for example, the heating control can only reduce the temperature when the window is actually open – not just based on the handle position. Another highlight is the alarm function. In the event of strong vibrations on the frame or glass, the handle triggers an immediate alert. This function is particularly relevant for burglary protection, as it detects tampering attempts before a window is opened.

Technical Basis: KNX RF+ and KNX Secure

The RF-FGES.01S operates with the KNX RF+ protocol in system mode. This means it can be fully integrated into a KNX installation and parameterised via ETS software. Communication takes place wirelessly, which also facilitates use in existing buildings where no bus cables have been installed. For maximum data security, the handle supports KNX Secure. All telegrams are transmitted encrypted to exclude manipulation or eavesdropping attempts. This is an indispensable feature, especially for security-relevant functions such as window monitoring.

Mechanics and Design

The mechanical design of the RF-FGES.01S is as well thought out as the electronics. The handle is made of robust stainless steel and visually blends harmoniously into modern living and working environments. The cover cap measures 145x36x27 mm and elegantly conceals the electronics. The square spindle has a diameter of 7 mm and is variable in length from 32 to 43 mm. This makes the handle suitable for most common window and door fittings. Installation is carried out like a normal window handle – without special tools and without interfering with the window mechanics.

Power Supply and Maintenance

Power is supplied by two standard AA batteries, which are included in the scope of delivery. Consumption is optimised so that the batteries achieve a long service life. Battery replacement is straightforward and does not require removing the entire handle – the cover can be easily opened.

Integration into Smart Home Scenarios

The RF-FGES.01S is not just a sensor but a component for complex automation. Typical applications include:

Heating Control: Window Open Radiator valves close to save energy.
Alarm Systems: Vibration Detected Immediate alarm notification to the KNX central unit or push notification via a gateway.
Ventilation Control: Window Tilted Ventilation system reduces output to avoid unnecessary energy loss.
Scene Control: Window Closed Activate "Away" scene, lower blinds, switch off lights.

Thanks to compatibility with MDT homeXpert and other KNX visualisations, these functions can be conveniently monitored and controlled.

Installation and Commissioning

Installation is straightforward: remove the old window handle. Insert and screw in the RF-FGES.01S with the matching square spindle. Insert batteries and close the cover. Integrate the device into the KNX RF+ system via ETS. Parameterisation is carried out like with other KNX devices: communication objects for handle position, tilt sensor, and alarm function are available. This allows flexible integration of the handle into existing logics.

Why This Handle Is a Gamechanger

The RF-FGES.01S brings intelligence to a place that has often been neglected until now: the window. While door contacts and motion detectors are already standard, the exact detection of window position remains a challenge in many smart homes. This handle solves it elegantly – without additional sensors, without cables, without compromises in design and security. The combination of mechanical simplicity and digital precision makes the RF-FGES.01S an indispensable component for any KNX system. It saves energy, increases security, and expands the possibilities for automation – all in a component that integrates unobtrusively into everyday life.

Amazon Alexa: No
Apple HomeKit: No
BAB-Tec: No
Bluetooth: No
Brand: MDT
Casambi: No
Class: Window-door contact
Colour: silver
DALI: No
ENOcean: No
free@home: No
Gira One: No
Google Assistant: No
Hager KNXeasy: No
Installation location: Window
JUNG HOME: No
KNX: Yes
KNX-RF: Yes
KNX-Secure: Yes
KNX-TP: No
Manufacturer item number: RF-FGES.01S
Manufacturer type: RF-FGES.01S
Manufacturer's Description: KNX RF+ Window Handle, Secure, Stainless Steel
Matter: No
Mbus: No
Modbus: No
Modbus RTU: No
Modbus TCP: No
Samsung SmartThings: No
Shelly: No
Siemens LOGO!: No
Theben LUXORliving: No
Thread: No
Type of transmission: radio
VDS: without
Wi-Fi: No
Wiser Home: No
with Netatmo: No
Zigbee: No
