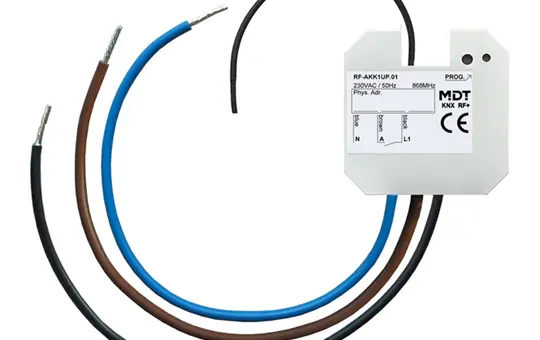

MDT RF-AKK1UP.01 KNX RF Switching Actuator | 1-fold

Manufacturer: MDT

Article no.: 20001349

EAN: 4251916148515

Manufacturer item number: RF-AKK1UP.01

Manufacturer type: RF-AKK1UP.01

Weight: 0,054 kg

Not available

Attention! This article has a successor or replacement article, which you can access here: 20073594

KNX RF+ wireless switching actuator, single channel, flush-mounted, 10 A, 230 V AC. For installation in the switch box. Version with monostable relay, current max. 10 A for resistive load, 10 A at 14 µF / 2 EVG. For operation within the EU, 868 MHz. New KNX RF+ protocol in system mode. Commissioning from ETS 5. Normally open and normally closed operation. Time functions (switch-on/switch-off delay, staircase lighting function). Feedback function (active/passive) for all channels. Logical links. 8 scenes per channel. Central functions and lock objects for forced control. Adjustable behaviour in case of bus voltage failure/recovery. Installation in the switch box. Connection via MDT KNX RF+ wireless line coupler. For modernisation without laying bus cables. Power supply 230 V AC. Dimensions (W x H x D): 41 mm x 41 mm x 22 mm. 3 years product warranty.

BAB-Tec: No
Binary inputs integrated: No
Bistable relays: No
Blinds: No
Bluetooth: No
Brand: MDT
Capacitive load in µF: 14
Casambi: No
Class: switching actuators
Current measurement: No
DALI: No
Dimming: No
Division units: 2 TE
ENOcean: No
Fan coil: No
free@home: No
Gira One: No
Hager KNXeasy: No
Inputs for potential-free contacts: No
JUNG HOME: No
KNX: Yes
KNX-RF: Yes
KNX-Secure: No
KNX-TP: No
Local/manual operation: No
Manufacturer item number: RF-AKK1UP.01
Manufacturer type: RF-AKK1UP.01
Manufacturer's Description: KNX RF+ Switch Actuator 1 gang, flush mounted, 10 A, 230 V AC
Matter: No
max. switching current in A: 10
Mbus: No
Modbus: No
Modbus RTU: No
Modbus TCP: No
Mounting type: flush-mounted
Number of outputs: 1
Rated voltage outputs: 230V AC
Shelly: No
Siemens LOGO!: No
suitable for C load: No
Theben LUXORliving: No
Thread: No
Type of transmission: radio
Wi-Fi: No
Wiser Home: No
with Netatmo: No
Zigbee: No

The following links may lead to external websites. Voltus cannot be held responsible for the accuracy or timeliness of external content.

Data Sheet

Manual

Manufacturer information

MDT
MDT technologies GmbH
Papiermühle 1
51766 Engelskirchen
DE

knx@mdt.de
www.mdt.de/
