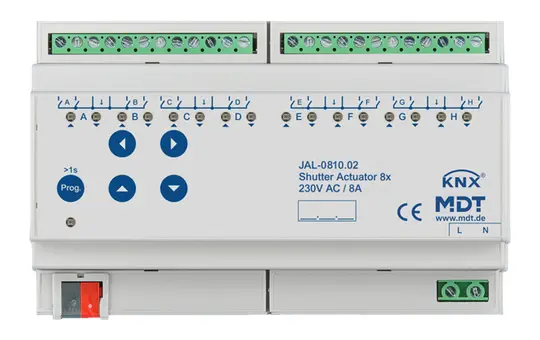

MDT JAL-0810.02 KNX Blind Actuator 230 V | 8-fold

Manufacturer: MDT

Article no.: 20002447

EAN: 4251916130633

Manufacturer item number: JAL-0810.02

Manufacturer type: JAL-0810.02

Weight: 0,49 kg

In stock

Delivery: 2-3 business days

pcs

The JAL-0810.02 is a high-quality blind actuator for smart home systems that enables simple and convenient control of blinds, roller shutters, and awnings. With this actuator, you can make your home even smarter and simplify your daily life.

This blind actuator is specially designed for use in KNX systems and allows seamless integration into your existing smart home network. Thanks to its 8-fold design, you can control 8 blinds independently at the same time with the JAL-0810.02. Another highlight of the JAL-0810.02 is its easy installation and configuration. The actuator is simply integrated into the existing KNX installation and can then be individually set via ETS. For example, you can adjust the running times of the blinds individually or create scenes that control several blinds simultaneously.

Features:

8-channel blind actuator for KNX systems
Easy integration into existing smart home networks
Individual configuration options via ETS software
Control of 8 blinds independently
High-quality workmanship for long service life

Specifications:

Power supply: via KNX bus
Number of outputs: 8
Maximum load per output: 8 A
KNX system: Yes
Mounting type: DIN rail mounting
Protection rating: IP20
Division units: 8

The JAL-0810.02 is a high-quality KNX blind actuator characterised by its reliability and ease of use. With its 8 channels, it enables the control of up to 8 blinds or roller shutters. The actuator features integrated current measurement for automatic end position detection (only "M" models), which ensures precise positioning of the blinds even after years. Configuration and control are carried out via the KNX system, allowing seamless integration into a smart home system. Particularly noteworthy is the possibility to programme various scenes and time profiles to automatically control the blinds. The MDT JAL-0810.02 is thus the ideal solution for comfortable and energy-efficient control of blinds and roller shutters in any home.

Manufacturer MDT is an established provider of smart home solutions and has positioned itself on the market as a reliable partner for building automation. The company is especially known for its high-quality KNX products, which are valued for their high quality and ease of use. MDT’s strengths lie in the individual customisation of systems to customer needs as well as in competent advice and support in planning and implementing smart home projects. With the JAL-0810.02 blind actuator, the company offers a reliable solution for controlling blinds and roller shutters.

BAB-Tec: No
Binary inputs integrated: No
Blinds: Yes
Bluetooth: No
Brand: MDT
Casambi: No
Class: Blind actuators
DALI: No
Dimming: No
Division units: 8 TE
ENOcean: No
Fan coil: No
free@home: No
Gira One: No
Hager KNXeasy: No
JUNG HOME: No
KNX: Yes
KNX-RF: No
KNX-Secure: No
KNX-TP: Yes
Local/manual operation: Yes
Manufacturer item number: JAL-0810.02
Manufacturer type: JAL-0810.02
Matter: No
max. switching power in W: 600
Mbus: No
Modbus: No
Modbus RTU: No
Modbus TCP: No
Mounting type: Series installation
Number of outputs: 8
Rated voltage outputs: 230V AC
Shelly: No
Siemens LOGO!: No
Size of connection terminal in mm2: 4
SMI control: No
Sun position calculation: Yes
Theben LUXORliving: No
Thread: No
Travel time measurement: No
Type of transmission: Cable
Ventilation function: Yes
Wi-Fi: No
Wiser Home: No
with Netatmo: No
Zigbee: No

The following links may lead to external websites. Voltus cannot be held responsible for the accuracy or timeliness of external content.

Data Sheet

Manual

Manufacturer information

MDT
MDT technologies GmbH
Papiermühle 1
51766 Engelskirchen
DE

knx@mdt.de
www.mdt.de/
