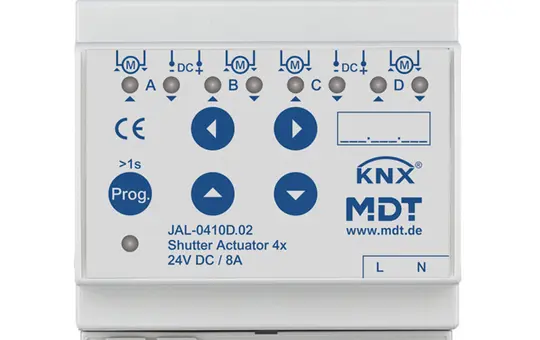

MDT JAL-0410D.02 KNX Blind Actuator 24 V DC 4-fold

MDT JAL-0410D.02 KNX Blind Actuator 24 V DC | 4-fold

Manufacturer: MDT
Article no.: 20002449
EAN: 4251916130619
Manufacturer item number: JAL-0410D.02
Manufacturer type: JAL-0410D.02
Weight: 0,296 kg
In stock
Delivery: 2-3 business days
Electrical appliance take-back
pcs
KNX Shutter Actuator 4-fold, 4TE, REG, 8 A, 24 V DC.


For 24 V DC motors up to 180 W. With sun position calculation. Manual operation can be locked and LED display for each channel. Operating mode shutter/blind. Practical ventilation function (window open/tilted). Automatic shading/slat adjustment with sun position calculation. Running, pause, and step time freely adjustable. Separate travel time for up/down adjustable. Button operation for precise positioning. Extended 1-bit automatic positions and scene functions. 1-byte absolute positioning for height and slat. Alarm, central, and lock functions. Behaviour after alarm and lock individually adjustable. Priority/forced control with automatic fallback time. For 24 V DC motors with 2 connections. Integrated polarity reversal circuit. Adjustable behaviour in case of bus voltage failure/restoration. Fast application download (long frame support for ETS 5). 3-year product warranty.
BAB-Tec
No
Binary inputs integrated
No
Blinds
Yes
Bluetooth
No
Brand
MDT
Casambi
No
Class
Blind actuators
DALI
No
Dimming
No
Division units
4 TE
ENOcean
No
Fan coil
No
free@home
No
Gira One
No
Hager KNXeasy
No
JUNG HOME
No
KNX
Yes
KNX-RF
No
KNX-Secure
No
KNX-TP
Yes
Local/manual operation
Yes
Manufacturer item number
JAL-0410D.02
Manufacturer type
JAL-0410D.02
Manufacturer's Description
KNX Shutter Actuator 4-channel, 4 SU MDRC, 8 A, 24 V DC
Matter
No
max. switching power in W
180
Mbus
No
Modbus
No
Modbus RTU
No
Modbus TCP
No
Mounting type
Series installation
Number of outputs
4
Rated voltage outputs
24V DC
Shelly
No
Siemens LOGO!
No
Size of connection terminal in mm2
4
SMI control
No
Sun position calculation
Yes
Theben LUXORliving
No
Thread
No
Travel time measurement
No
Type of transmission
Cable
Ventilation function
Yes
Wi-Fi
No
Wiser Home
No
with Netatmo
No
Zigbee
No
