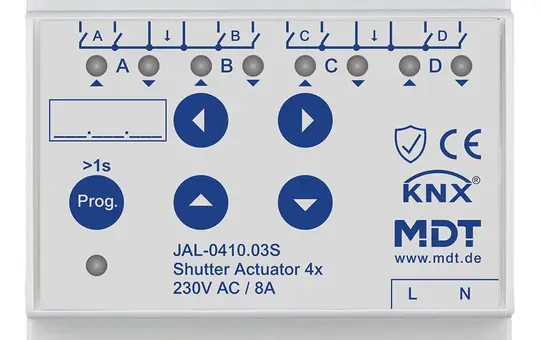

MDT JAL-0410.03S KNX Blind Actuator 230 V 4-way, Secure

MDT JAL-0410.03S KNX Blind Actuator 230 V | 4-way, Secure

Manufacturer: MDT
Article no.: 20094239
EAN: 4251916131135
Manufacturer item number: JAL-0410.03S
Manufacturer type: JAL-0410.03S
Weight: 0,276 kg
Available on request
Electrical appliance take-back
pcs

This item is a new release and is expected to be available for the first time from January.



KNX shutter actuator 4-fold, 4TE REG, 8 A, 230 V AC, Secure. For 230 V AC motors up to 300 W. With solar position calculation. KNX Data Secure. With solar position calculation. Virtual interface in the ETS. Central objects with optional delay. Extensive application. Manual operation lockable and LED display per channel. Operating mode for blinds/shutters. Practical ventilation function (window open/tilted). Automatic shading/slat tracking with solar position calculation. Operating hour counter. Running, pause and step times freely adjustable. Separately adjustable travel times for up/down. Push-button operation for precise positioning. Extended 1-bit automatic positions and scene functions. 1-byte absolute positioning for height and slat. Alarm, central and lock functions. Behaviour after alarm and lock separately adjustable. Adjustable behaviour on bus voltage failure/recovery.
BAB-Tec
No
Binary inputs integrated
No
Blinds
Yes
Bluetooth
No
Brand
MDT
Casambi
No
Class
Blind actuators
DALI
No
Dimming
No
Division units
4 TE
ENOcean
No
Fan coil
No
free@home
No
Gira One
No
Hager KNXeasy
No
JUNG HOME
No
KNX
Yes
KNX-RF
No
KNX-Secure
Yes
KNX-TP
No
Manufacturer item number
JAL-0410.03S
Manufacturer type
JAL-0410.03S
Manufacturer's Description
KNX Shutter Actuator 4-channel, 4 SU MDRC, 8 A, 230 V AC, Secure
Mounting type
Series installation
Number of outputs
4
Shelly
No
Siemens LOGO!
No
Sun position calculation
Yes
Switch
No
Theben LUXORliving
No
Thread
No
Travel time measurement
No
Type of transmission
Cable
Ventilation function
Yes
Wi-Fi
No
Wiser Home
No
with Netatmo
No
Zigbee
No
