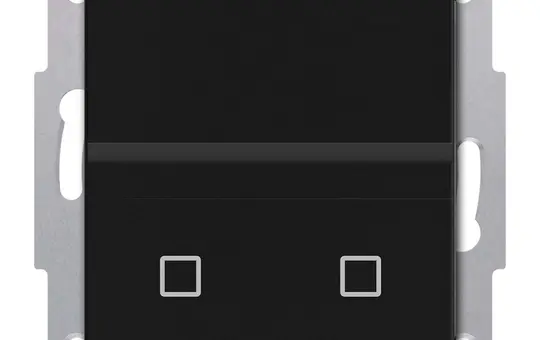

MDT BWM-55T06.03S Motion Detector 55 | Secure, with temperature sensor | matt black

Manufacturer: MDT

Article no.: 20094319

EAN: 4251916114824

Manufacturer item number: BWM-55T06.03S

Manufacturer type: BWM-55T06.03S

Weight: 0,062 kg

Available on request

pcs

KNX motion detector/automatic switch TS 55, matt black, Secure. Version with temperature sensor and 2 sensor buttons. KNX Data Secure, integrated bus coupler. Suitable for 55 mm switch programmes, e.g. MDT Sortiment 55 or GIRA Standard 55, E2, Event, Esprit or BERKER S1, B3, B7 or JUNG A 500, A PLUS, A CREATION, AS 500, A 550, A FLOW or MERTEN 1M, M-Smart, M-Plan, M-Pure.

Motion detector with 2 sensors and light sensor. Two sensor buttons for any functions. Temperature sensor for detecting room temperature. Detection angle H 180° / V 15°, range 6 ... 10 m. Suitable for pets up to 12 kg. Trigger sensitivity for day, night and presence adjustable separately. Detection of movement direction. 2 light channels, 1 HVAC and alarm channel. Short-time presence to reduce follow-up time. Master/slave function, scenes and logic functions. Integrated white LED night light.

Acoustic sensor: No
Air pressure sensor: No
Area: Inside
BAB-Tec: No
Bluetooth: No
Brand: MDT
Brightness sensor: Yes
Casambi: No
Class: Motion detector
Colour: black
Crawl protection: No
DALI: No
DALI-2: No
Detection area: circular
Detection type/sensor type: Passive infrared
ENOcean: No
fits in 55 switch range: Yes
free@home: No
Frontal range in m: 5
Gira One: No
Hager KNXeasy: No
Horizontal detection angle: 180
Humidity sensor: No
Installation height in m: 1.1
Installation location: Wall
JUNG HOME: No
KNX: Yes
KNX-RF: No
KNX-Secure: Yes
KNX-TP: No
Manufacturer item number: BWM-55T06.03S
Manufacturer type: BWM-55T06.03S
Manufacturer's colour: black
Manufacturer's Description: KNX Motion Detector/Automatic Switch TS 55, Black matt, Secure
Material: Plastic
Mounting type: flush-mounted
Protection class (IP): IP20
Reach laterally in m: 5
Remote controllable: No
Shelly: No
Siemens LOGO!: No
suitable for ceiling mounting: No
suitable for installation in switch ranges: Yes
suitable for wall mounting: Yes
Surface: matt
Temperature sensor: Yes
Theben LUXORliving: No
Thread: No
Type of transmission: Cable
Wi-Fi: No
Wiser Home: No
with Netatmo: No
Zigbee: No

Manufacturer information

MDT
MDT technologies GmbH
Papiermühle 1
51766 Engelskirchen
DE

knx@mdt.de
www.mdt.de/
