MDT BE-TAS8606.02 KNX Touch Sensor Smart 86 standard | matt black

MDT BE-TAS8606.02 KNX Touch Sensor Smart 86 | standard | matt black

Manufacturer: MDT
Article no.: 20045967
EAN: 4251916113926
Manufacturer item number: BE-TAS8606.02
Manufacturer type: BE-TAS8606.02
Weight: 0,12 kg
In stock
Delivery: 2-3 business days
Electrical appliance take-back
pcs

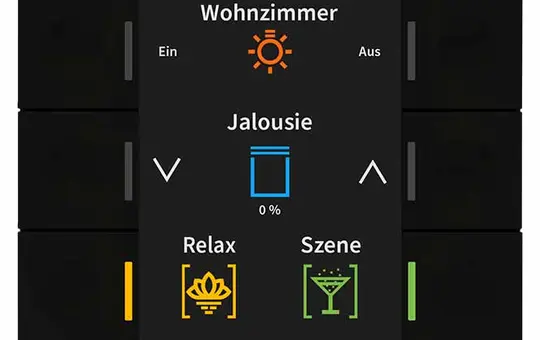

The KNX Smart 86 pushbutton in matte black plastic features 6 mechanical buttons with finger recesses, a colour display, and an RGB status indicator. It can be used as a 4/6/8/12-button pushbutton and offers an active colour display for function and status indication. Up to 12 functions are available on 2 or 3 levels (2x6 or 3x4 functions), while up to 6 functions can be used without level switching. A mapping function simplifies function assignment, and the buttons can be freely configured as button pairs or single buttons. Customisable symbols and texts are available for each button. The pushbutton supports single and double pushbutton operation for switching, dimming, and blinds control, and RGB status LEDs can be controlled per level. The display brightness is automatically adjusted via a light sensor. No additional power supply is required, and the recommended installation height is between 1.10 and 1.25 m. Dimensions: 86 x 86 mm, with integrated bus coupler.
BAB-Tec
No
Bluetooth
No
Brand
MDT
Casambi
No
Class
Touch sensors
Colour
black
Customizable
No
DALI
No
ENOcean
No
fits in 55 switch range
No
free@home
No
Gira One
No
Hager KNXeasy
No
Humidity sensor
No
Infrared sensor
No
Installation location
Wall
Integrated actuator
No
Integrated binary input
No
Integrated room temperature controller
No
JUNG HOME
No
KNX
Yes
KNX-RF
No
KNX-Secure
No
KNX-TP
Yes
Label field
No
Manufacturer item number
BE-TAS8606.02
Manufacturer type
BE-TAS8606.02
Manufacturer's colour
black
Manufacturer's Description
KNX Push Button Smart 86 with colour display, Plastic, Black matt finish
Material
Plastic
Matter
No
Mbus
No
Modbus
No
Modbus RTU
No
Modbus TCP
No
Operating mode
push button
RGB lighting control
Yes
RGB status LED
No
Shelly
No
Siemens LOGO!
No
Status LED, control light
Yes
suitable for installation in switch ranges
No
Surface
matt
Temperature sensor
No
Theben LUXORliving
No
Thread
No
Type of transmission
Cable
VOC sensor
No
Wi-Fi
No
Wiser Home
No
with display
Yes
with Netatmo
No
Zigbee
No
