MDT BE-TAS5504.01 KNX pushbutton sensor Smart 55 | standard | pure white shiny

Manufacturer: MDT

Article no.: 20046490

EAN: 4251916111274

Manufacturer item number: BE-TAS5504.01

Manufacturer type: BE-TAS5504.01

Weight: 0,043 kg

In stock

Delivery: 2-3 business days

96,07 €

incl. VAT + shipping

pcs

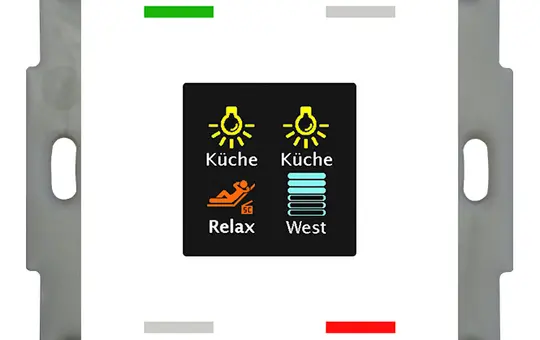

KNX Smart 55 4-way push button with color display, pure white glossy. Version with 4 button surfaces. Integrated bus coupling unit. Suitable for 55 mm switch ranges, e.g., GIRA Standard 55, E2, E22, Event, Esprit, BERKER S1, B3, B7, JUNG A 500, A PLUS, A CREATION, AS 500, A 550, A FLOW, MERTEN 1M, M-Smart, M-Plan, M-Pure. Active color display for function and status indication. Background color of the display can be set (white or black). Display brightness can be adjusted via brightness and day/night objects. Displays indoor/outdoor temperature and time. New multiple tap function, sends up to 4 values/DPTs to the same or different objects. Innovative group control with long/extra-long button press. One- and two-button operation for switching, dimming, blinds, and values. Symbols and custom text can be configured for each button/function. Short/long button presses with two objects. Installation in switch box with included support ring. Digital labeling/symbols

Brand: MDT
Class: Touch sensors
Color: white
Different bus system: -
fits in 55 switch range: Yes
Installation location: Wall
KNX: Yes
KNX-TP: Yes
Manufacturer item number: BE-TAS5504.01
Manufacturer type: BE-TAS5504.01
Manufacturer's color: reinweiß
Mounting type: flush-mounted
Number of buttons: 4
old Voltus number: 1695599
Operating mode: Button
RGB status LED: Yes
Series: Sortiment 55
Status LED, control light: Yes
suitable for installation in switch ranges: Yes
Surface: glänzend
Type of transmission: Cable
with display: Yes
