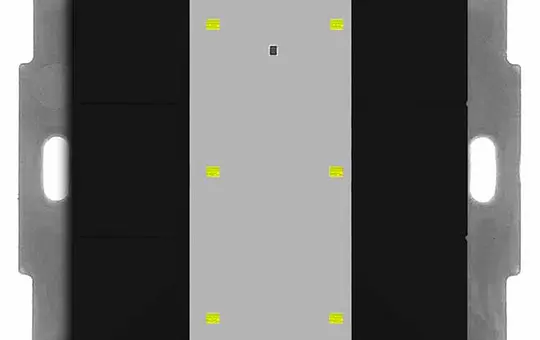

MDT BE-TA55T606.02 KNX pushbutton Plus with Temp. UP v2 | 6-fold | matt black

Manufacturer: MDT

Article no.: 20046009

EAN: 4251916113674

Manufacturer item number: BE-TA55T606.02

Manufacturer type: BE-TA55T606.02

Weight: 0,036 kg

In stock

Delivery: 2-3 business days

91,87 €

incl. VAT + shipping

pcs

KNX Push Button Plus TS 55, 6-way, matte black. Version with 6 buttons and temperature sensor. LEDs for operation/status and orientation light. Suitable for 55 mm switch ranges, e.g., MDT Range 55 or GIRA E2 or BERKER B3, B7 or JUNG A 550 or Merten M-Pure. Temperature sensor for detecting the room temperature. Central labeling field with cover film for custom labeling. The buttons can be freely configured as a pair or individual buttons. Single and double button operation for switching, dimming, blinds, and values. Innovative group control with long/extra-long button presses. Switching of up to four values or scenes. Short/long button presses with 2 objects. 4 logic blocks. 6 operation/status LEDs (red/green) and orientation light can be controlled independently. Switching object for controlling the LED priority. Installation in switch box with included support ring. Integrated bus coupling unit.

Brand: MDT
Class: Touch sensors
Color: black
Customizable: Yes
Different bus system: -
fits in 55 switch range: Yes
Installation location: Wall
KNX: Yes
KNX-TP: Yes
Label field: Yes
Manufacturer item number: BE-TA55T606.02
Manufacturer type: BE-TA55T606.02
Manufacturer's color: black
Number of buttons: 6
old Voltus number: 1708912
Operating mode: Button
Protection class (IP): -
RGB lighting control: Yes
Series: Sortiment 55
suitable for installation in switch ranges: Yes
Temperature sensor: Yes
Type of transmission: Cable

The following links may lead to external websites. Voltus cannot be held responsible for the accuracy or timeliness of external content.

Bedien- & Installationsanleitung

Produktdatenblatt

Manufacturer information

MDT
MDT technologies GmbH
Papiermühle 1
51766 Engelskirchen
DE

knx@mdt.de
www.mdt.de/

Hints

Bei einem nicht steckerfertigen elektrischen Gerät oder Bauteil dürfen Anschluss und Installation nur von einer qualifizierten Elektrofachkraft durchgeführt werden. Bitte beachte auch die Gebrauchsanweisung.

Recycling & disposal

Informationen zum Bereich Recycling & Entsorgung findest du hier: https://www.voltus.de/umweltschutz/.

Description

Specifications

Brand: MDT
Class: Touch sensors
Color: black
Customizable: Yes
Different bus system: -
fits in 55 switch range: Yes
Installation location: Wall
KNX: Yes
KNX-TP: Yes
Label field: Yes
Manufacturer item number: BE-TA55T606.02
Manufacturer type: BE-TA55T606.02
Manufacturer's color: black
Number of buttons: 6
old Voltus number: 1708912
Operating mode: Button
Protection class (IP): -
RGB lighting control: Yes
Series: Sortiment 55
suitable for installation in switch ranges: Yes
Temperature sensor: Yes
Type of transmission: Cable
