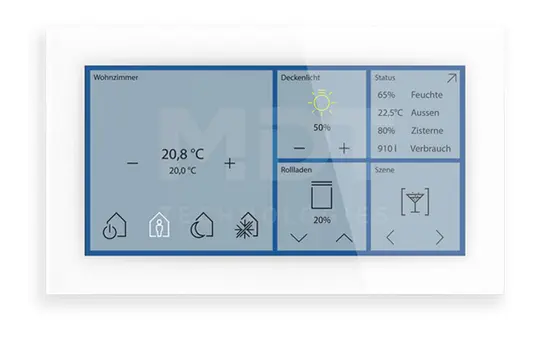

MDT BE-GTS06TW.01S KNX Glass Touch Smart | standard | glass white

Are you looking for a large, central dashboard that can control your entire home? Do you want maximum overview combined with the best tactile experience? Are you a big fan of an eye-catcher for all your guests, whose intuitive operation sparks conversations? Here comes the KNX Glass Touch Smart 6 inch!

• 6-inch touch display: High-resolution TFT display with 1440x720 pixels for razor-sharp visualisation of your functions.
• Flexible operation: Swipe gestures, jump function and up to 64 individually assignable functions provide maximum control.
• Integrated room control: With temperature sensor and heating/cooling controller, you can control climate and comfort directly on the device.
• KNX Data Secure: Encrypted communication for the highest security in your smart home.
• Design and customisation: Glass front, aluminium frame, freely selectable background images and tile sizes for a personalised interface.
• Plus features: RGBW backlighting, acoustic feedback, binary inputs and astro timer for extended functions.

Display and operating concept

The capacitive 6-inch TFT display of the MDT Glass Touch Smart is not only large but also high-resolution with 1440x720 pixels. Operation is intuitive via swipe gestures, similar to a smartphone. You can create up to 64 functions on different levels and switch between pages instantly with the jump function. For novices, this means: you control lighting, blinds, heating and scenes as easily as apps on your phone.

Design and customisation

The glass front combined with a brushed aluminium frame makes the Touch Smart a real design statement. It is available in white or black and blends harmoniously into modern living spaces. You can individually customise background images, logos and tile sizes so that the interface exactly matches your style. The status display in standby is also flexible: up to 12 values such as time, date, temperature or energy consumption can be shown.

Room functions and control

The Glass Touch Smart is much more than a switch. It takes over complete room control: switching and dimming lights, tunable white, RGB and RGBW for coloured lighting, sun protection for blinds and shutters as well as HVAC for heating and cooling operation. An integrated temperature sensor and room temperature controller ensure precise climate control. For you, this means: you no longer need a separate thermostat, everything runs through one device.

Security and KNX integration

KNX Data Secure is standard and protects your communication from tampering. The code lock function prevents unauthorised access – with the standard version for one user, with the Plus version for up to four users. Integration is via the KNX bus, parameterisation via ETS from version 5. You can conveniently install firmware updates via the MDT Firmware Update App.

Differences between Standard and Plus

The Plus variant stands out with additional features: a surrounding RGBW backlight serves as orientation light and signalling for states or alarms. An integrated speaker provides acoustic feedback during operation and can output messages. Two binary inputs allow connection of external buttons or window contacts. Furthermore, the Plus version offers an astro timer for time- and sun position-dependent controls as well as the pat function for a quick central OFF command by touching a large area.

Technical details

Both variants measure 92x160x12.5 mm and are mounted in a standard flush-mounted box. The auxiliary voltage is 24–30 V DC, an integrated bus coupler is included. Power consumption is minimal, protection class IP20 makes the device suitable for dry indoor rooms. Ambient temperature may range between 0 and 45 °C. The Plus version additionally features a PT1000 connection for external temperature measurement.

Logic and scene control

With universal logics and scene control, you can realise complex sequences. For example, an "Evening" scene can be programmed that dims the lights, closes the blinds and adjusts the temperature. For novices, this means: you press one button and your room automatically adapts to your mood.

Feature	Standard	Plus
Display	6 inch TFT, 1440x720 pixels	6 inch TFT, 1440x720 pixels
Orientation light	White	RGBW
Acoustic feedback	No	Yes
Binary inputs	No	2
External temperature sensor	No	PT1000
Timer	No	Yes, incl. astro function
Code lock	1 user	4 users
Pat function	No	Yes
Firmware update	Yes	Yes

Installation and practical use

Installation takes place in a standard flush-mounted box, wiring is straightforward thanks to the integrated bus coupler. After assigning the physical address and loading the application programme, the device is ready for use. Parameterisation via ETS allows you to customise all functions individually. For novices, this means: your electrician sets everything up and you enjoy full control over your smart home.

Combination options

The Glass Touch Smart can be combined with all KNX components, whether wired or extended via line coupler with radio. You can use it as a central control for lighting, shading and climate or integrate it into complex scenes.

MDT is a German manufacturer specialising in high-quality KNX products. The company stands for innovation, quality and practical solutions. All products are developed and manufactured in Germany, ensuring reliability and durability. With a broad portfolio of switching, dimming, blind and control devices, MDT offers everything you need for professional building automation. Manufacturing is carried out according to ISO-9001 standards, and the products are known for their stability and long service life.
