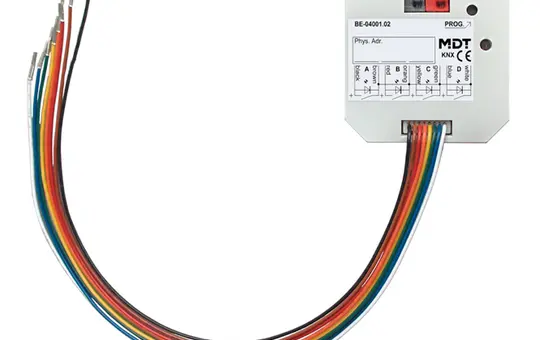

MDT BE-04001.02 KNX Push-button Interface Flush-mounted Potential-free 4-fold

MDT BE-04001.02 KNX Push-button Interface Flush-mounted Potential-free | 4-fold

Manufacturer: MDT
Article no.: 20003474
EAN: 4251916110031
Manufacturer item number: BE-04001.02
Manufacturer type: BE-04001.02
Weight: 0,038 kg
In stock
Delivery: 2-3 business days
Electrical appliance take-back
pcs

The BE-04001.02 is a high-quality KNX push-button interface specially developed for integration into smart home systems. With this interface, you can integrate your conventional push-buttons into your KNX system and thus control your smart devices cost-effectively and with a classic look & feel. It is also ideal for connecting reed switches on windows and doors.


  • Easy integration into existing KNX systems
  • 4 potential-free inputs for conventional push-buttons
  • Compact design for easy installation in flush-mounted boxes
  • Robust construction for a long service life

  • Product category: KNX push-button interface
  • Manufacturer: MDT
  • Manufacturer type: BE-04001.02
  • Bus system: KNX
  • Supply voltage: via KNX bus
  • Current consumption: < 10 mA
  • Mounting type: flush-mounted
  • Output voltage: potential-free
  • Number of channels: 4
  • Functions: control of lighting, heating and other functions via conventional push-buttons, reading of window and door contacts and other sensors

The BE-04001.02 is a push-button interface for the KNX system that enables simple and convenient control of various functions in a smart home. It features 4 potential-free inputs that allow conventional push-buttons or switches to be integrated into the KNX system. This enables cost-effective installation and increases user-friendliness and acceptance by using familiar push-buttons. In combination with reed switches, this flush-mounted push-button input can also be used for the decentralised connection of window status. Thanks to its compact, slim design, it is particularly space-saving and can be easily installed in flush-mounted boxes. The BE-04001.02 can be easily integrated into existing KNX installations and is parameterised using the ETS. It offers reliable and user-friendly control of lighting, blinds, heating, and other functions in the smart home. With the BE-04001.02, the KNX system becomes even more versatile and convenient.


The manufacturer MDT is an established supplier of KNX devices and has positioned itself in the market as a reliable partner for individual solutions. The company is especially known for its high-quality products, which impress with their ease of use and high functionality. MDT’s strengths lie in its close market proximity, high quality, and broad range of products that allow flexible adaptation to customer needs. With the MDT BE-04001.02 push-button interface, MDT offers an innovative solution for controlling KNX devices that integrates seamlessly into any smart home system.

BAB-Tec
No
Bluetooth
No
Brand
MDT
Casambi
No
Class
Button interface
Colour
white
Configuration
binary
DALI
No
ENOcean
No
free@home
No
Gira One
No
Hager KNXeasy
No
Installation location
Wall
JUNG HOME
No
KNX
Yes
KNX-RF
No
KNX-Secure
No
KNX-TP
Yes
Manufacturer item number
BE-04001.02
Manufacturer type
BE-04001.02
Manufacturer's Description
KNX Universal Interface 4-channel, flush mounted, Potential free version
Matter
No
Mbus
No
Modbus
No
Modbus RTU
No
Modbus TCP
No
Mounting type
flush-mounted
Number of inputs
4
Potential free
Yes
Shelly
No
Siemens LOGO!
No
Theben LUXORliving
No
Thread
No
Type of transmission
Cable
Wi-Fi
No
Wiser Home
No
with Netatmo
No
Zigbee
No

The following links may lead to external websites. Voltus cannot be held responsible for the accuracy or timeliness of external content.

Manual
Data Sheet
Manufacturer information
MDT
MDT technologies GmbH
Papiermühle 1
51766 Engelskirchen
DE

knx@mdt.de
www.mdt.de/
