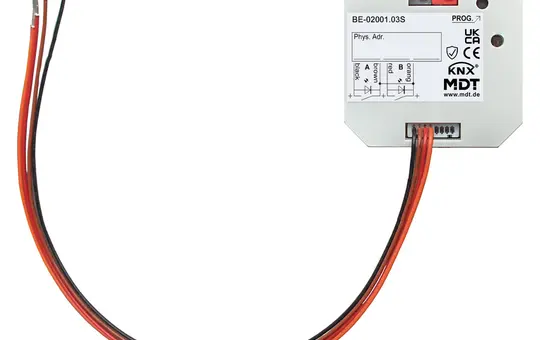

MDT BE-02001.03S KNX-Secure Tasterschnittstelle UP potentialfrei

MDT BE-02001.03S KNX-Secure Tasterschnittstelle UP potentialfrei

Manufacturer: MDT
Article no.: 20103036
EAN: 4251916116941
Manufacturer item number: BE-02001.03S
Manufacturer type: BE-02001.03S
Weight: 0,036 kg
Available on request
Electrical appliance take-back
pcs
KNX Pushbutton Interface / Pushbutton Interface 2-gang, flush-mounted, potential-free, Secure.

Version for connecting potential-free contacts or LEDs. KNX Data Secure. Virtual interface in the ETS. For installation in the flush-mounted box, maximum cable length 10 m. For connecting pushbuttons, switches, window contacts. Each channel can be set as an output for 2 mA low-current LEDs. Multi-tap function sends up to 4 values to the same or different objects. Innovative group control with long/extra-long button press.

4 integrated logic modules, e.g. for evaluating the inputs (window closed or sending a second object). Normally closed and normally open operation, adjustable button press duration. Dimmer and blind functions for single and two-button operation. Sending values, forced control, and switching commands adjustable. Integrated bus coupler. Short/long button press with 2 objects. Integrated pulse and switching counters, cyclic sending adjustable.

For installation in the flush-mounted box (length of connection cable 22 cm). Dimensions (H x W x D): 41 x 41 x 12 mm.
Amazon Alexa
No
Apple HomeKit
No
BAB-Tec
No
Bluetooth
No
Brand
MDT
Casambi
No
Class
Button interface
Colour
white
Configuration
binary
DALI
No
Different bus system
No
ENOcean
No
free@home
No
Gira One
No
Google Assistant
No
Hager KNXeasy
No
Home Assistant
No
Installation location
Wall
JUNG HOME
No
KNX
Yes
KNX-RF
No
KNX-Secure
Yes
KNX-TP
Yes
Manufacturer item number
BE-02001.03S
Manufacturer type
BE-02001.03S
Manufacturer's Description
KNX Universal Interface 2-channel, flush mounted, Potential free version, Secure
Matter
No
Mbus
No
Modbus
No
Modbus RTU
No
Modbus TCP
No
Mounting type
flush-mounted
Number of inputs
2
Potential free
Yes
Samsung SmartThings
No
Shelly
No
Siemens LOGO!
No
Theben LUXORliving
No
Thread
No
Type of transmission
Cable
Wi-Fi
No
Wiser Home
No
with Netatmo
No
Zigbee
No
